SH-8008F-2 8 端口 10M / 100M 非网管型工业交换集线器

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

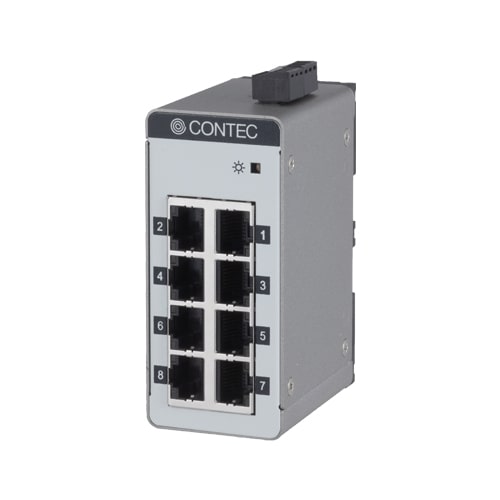

This product is an 100Mbit compact-sized industrial switching HUB (8 ports). This hub can be used in the places where the quietness or a longer lifetime of the product is desired. Furthermore, a metal housing with excellent heat dissipation enables the product to be operated in the temperature between -20°C and +60°C. This product has been arranged so that the DIN rail position is in the center, compared to the previous model. As a result, it can be installed in a variety of control panel.

• With its compact size, it corresponds to 100BASE-TX in eight all port

  • This product contains eight ports for IEEE802.3u (100BASE-TX)/IEEE802.3(10BASE-T) in the compact size(40(W) x 70(D) x 90(H) mm).
• 2-way power connector and reverse wiring protection within

  • Even when one of the power systems fails during the operation, the product continues functioning. Our safety design supports the product to function even when wires are connected in reverse.
• Adaptable to a wide range of temperature between -20 and +60°C

  • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

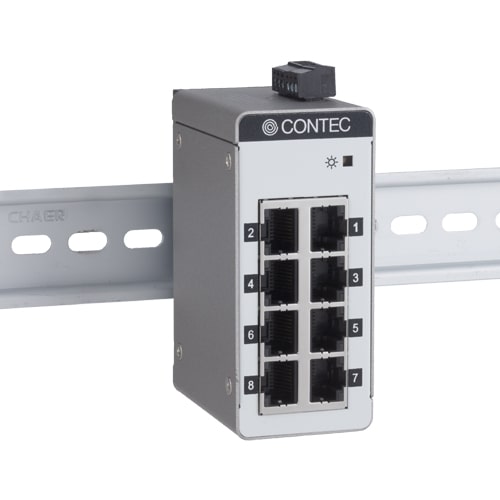

• Installation on DIN rail is possible

  • As the product is mounted on the 35mm DIN rail, removing and replacing are easy as well.

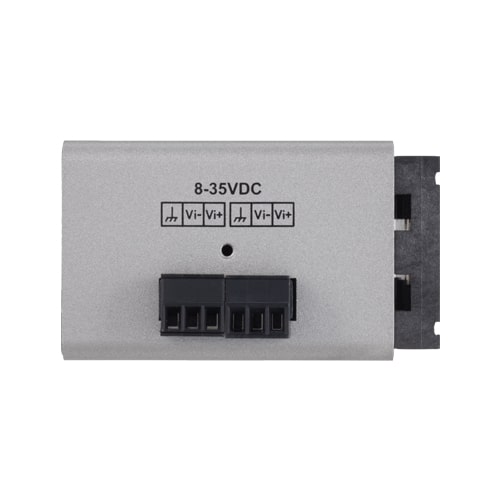

• Compatible with 8 to 35VDC wide range power

  • It is compatible with 8 - 35VDC wide range power and can be used in various power environment. In addition, An FG terminal is equipped in the power connector.
