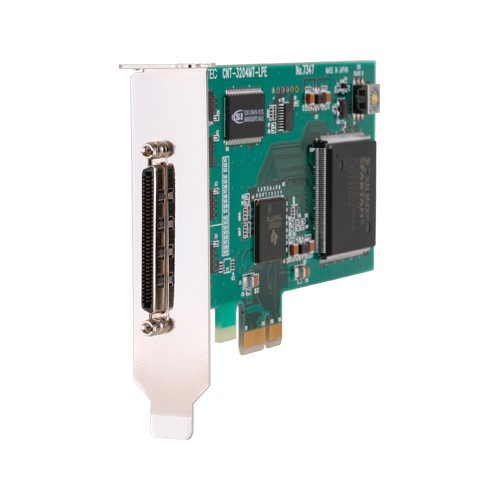

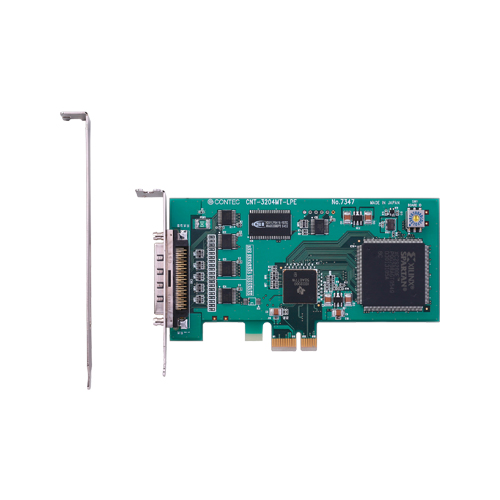

CNT-3204MT-LPE 计数 Low Profile PCI Express 总线板卡 4ch (32bit 上/下计数 10MHz) / 增量编码器接口

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • It can converted into differential input interface by using differential unit [CTP-4D] and connection cable [CNT-68M/50M] sold separately.
  • It puts one point of control signal for each channel (counter start/ stop and pre-sets).
  • It can sample a count value in sampling rate of 20MHz at the maximum. In addition, high-speed data transmission between a card and PCs are possible without hanging load to CPU by Bus master teansfer function.
  • In according with the arbitrary value that a count value set, Outbreak of interrupt, the output of an outside signal, pre-set and zero clear of a count value are possible.
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号 适应规格
CNT-3204MT-LPE 计数 Low Profile PCI Express 总线板卡 4ch (32bit 上/下计数 10MHz) / 增量编码器接口
  • CE 欧洲合格认证
  • VCCI

可选件

Device Drivers

項目 項目名
API-CNT(WDM) Windows Driver for Counter Input Driver
API-TIMER(W32) Timer Driver

Development Support Tools

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-LV-WIN LabVIEW Data Acquisition Library

Expansion Accessory Module

項目 項目名
CTP-4D Termination Panel with Differential Receivers for Counter Input

Cable

項目 項目名
CNT-68M/50M Shield Cable for Counter Input Card for CardBus
PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

項目 項目名
EPD-50A Screw Terminal (M3 x 50)
EPD-68A Screw Terminal (M3 x 68)

延长保修服务

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
