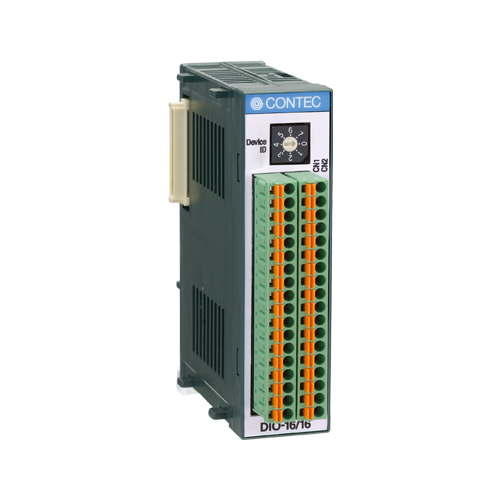

DIO-16/16(FIT)GY 数字量输入输出 F&eIT总线 I/O模块 16点/16点 (光电隔离 12-24VDC)

  • RoHS Compliant
  • 标准保修1年
  • 延长保修可能
  • A different external power supply can be used for each common pin as it is shared by 16 signal points
  • High sink open collector output
  • Improved noise immunity
  • Built-in digital filter function
  • Easy device number management
  • Equipped with a 35mm DIN rail mounting mechanism as standard on the module body
  • *
    有关延长保修的详细信息,请与我们联系。

其他型号

概要・特点

This product is an expansion module (device module) that adds digital signal I/O interfaces to one of various types of controllers. The product is used in combination with the I/O controller module < CPU-CAxx(FIT)GY > (*1) or BOX-PC < BX-300-DC5xxx > (*1) or microcontroller unit < CPU-SBxx(FIT)GY > (*1) in the F&eIT Series. This product can perform a maximum of 16 points of opto-isolated input and 16 points of opto-isolated output per module. (Input: 12 - 24 VDC specified, output: 12 - 48 VDC specified)

  • *1
    This module is available in different product models. "x" in each model number represents a blank or one alphanumeric character. This is applicable to the rest of this document.

  • A different external power supply can be used for each common pin as it is shared by 16 signal points
    • Different external power supplies can be used for each common pin as it is shared by 16 channels. DIO-16/16(FIT)GY has 16 digital input channels and 16 digital output channels.
  • High sink open collector output
    • Output section is a high sink current, open collector type using high-capacitance transistors. 150 mA/24 VDC or 50 mA/48 VDC max. (per channel). Input section is ready to accept both the current sinking output and current source output.
  • Improved noise immunity
    • Isolated I/O operations using an opto-coupler improves noise immunity.
  • Built-in digital filter function
    • It has a digital filter to prevent input signals from carrying noise or a chattering..All of the input signals can be used as interrupt inputs. Interrupt trigger edge of the input signal is also selectable.
  • Easy device number management
    • A rotary switch allows you to set device IDs to help you keep track of device numbers.
  • Equipped with a 35mm DIN rail mounting mechanism as standard on the module body
    • Like other F&eIT series products, the module has a 35mm DIN rail mounting mechanism as standard. A connection to a controller module can be effected on a lateral, stack basis in a unique configuration, which permits a simple, smart system configuration without the need for a backplane board.
