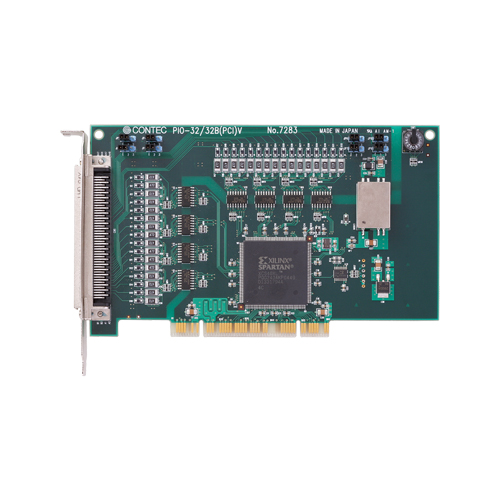

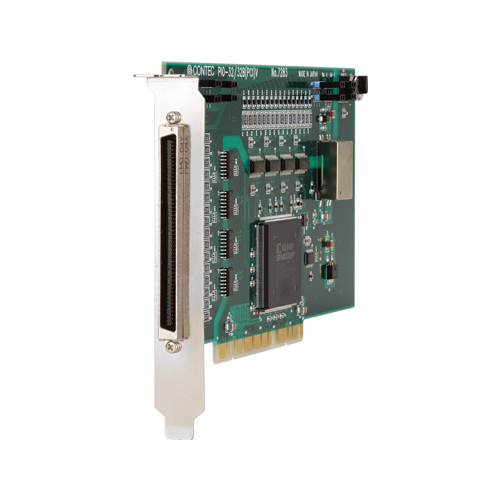

PIO-32/32B(PCI)V 数字量输入输出 PCI总线 板卡 32点/32点 (板载12VDC电源 光电隔离 12-24VDC)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • A different external power supply can be used for each common pin as it is shared by 16 channels
  • The PCI bus (personal computer) and the I/O interface are isolated from each other by an opto-coupler, offering good noise immunity
  • You can use 31 channels of the input signals as interrupt events. You can also select the interrupt trigger edge of the input signal
  • The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs
  • Up to 35VDC, 100mA per output signal, max
  • An on-board isolated supply(12VDC, 250mA) is equipped. You can select to use either this on board supply or external power supply for driving photo-isolation circuits
  • *
