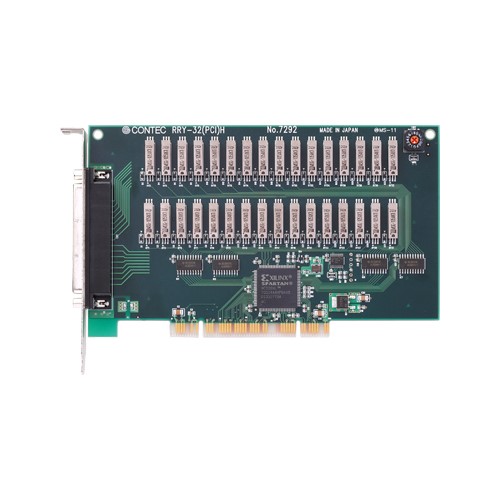

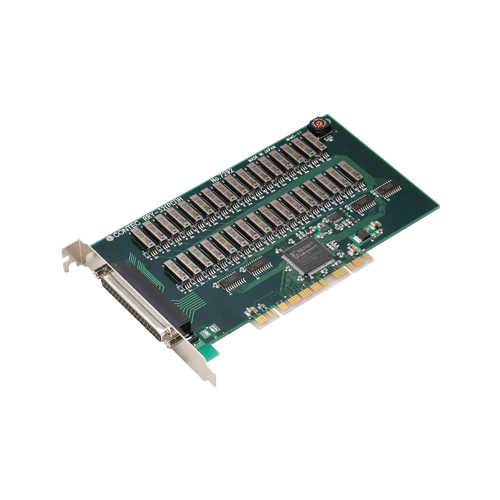

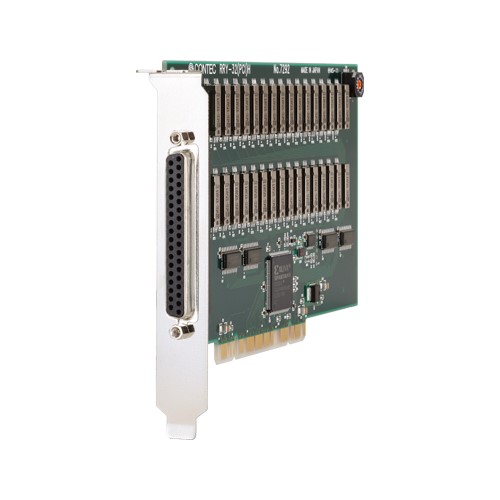

RRY-32(PCI)H 干簧继电器触点数字量输出 PCI总线 板卡 32点 (最大100VAC或100VDC)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • 32 reed relays with a single make contact are implemented. These relays are classified into four groups, each group (eight relays) sharing a minus common pin.
  • Output ratings are designed for a maximum of 100VAC/100VDC and 500 mA per channel, a maximum of 1A for each group (one group of eight channels share a minus common). Relay contactor rating is 10VA(10W) maximum.
  • *
