DIO-3232L-PE 数字量输入输出 PCI Express总线 板卡 32点/32点 (光电隔离 12-24VDC)

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
  • Opto-coupler bus isolation
  • You can use all of the input signals as interrupt request signals.
  • This product has a digital filter to prevent input signals from carrying noise or a chattering.
  • The output circuit, has a built-in Zener diode and the overcurrent protection circuit of the surge voltage protection.
  • Windows/Linux compatible driver libraries are attached.
  • *
    有关延长保修的详细信息,请与我们联系。

概要・特点

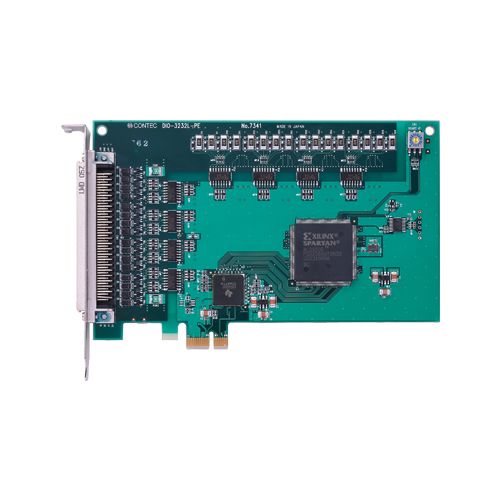

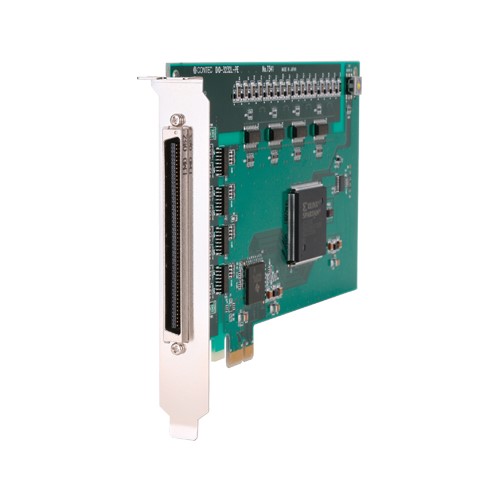

This product is a PCI Express bus-compliant interface card that extends the digital signal I/O functions of a PC. DIO-3232L-PE is a 12 - 24VDC opto-coupler isolated type with opto-coupler isolated input 32ch and opto-coupler isolated open-collector output 32ch. You can use all of the input signals as interrupt inputs. Equipped with the digital filter function and output transistor protection circuit (surge voltage protection and overcurrent protection).Windows/Linux driver is bundled with this product.

  • Opto-coupler isolated input (supporting current sink output) and opto-coupler isolated open-collector output (current sink type)
    • DIO-3232L-PE has the opto-coupler isolated input 32ch (supporting current sink output) whose response speed is 200µsec and opto-coupler isolated open-collector output 32ch (current sink type). Common terminal provided per 16ch, capable of supporting a different external power supply. Supporting driver voltages of 12 - 24 VDC for I/O.
  • Opto-coupler bus isolation
    • As the PCI Express bus (PC) is isolated from the input and output interfaces by opto-couplers, this product has excellent noise immunity.
  • You can use all of the input signals as interrupt request signals.
    • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
  • This product has a digital filter to prevent input signals from carrying noise or a chattering.
    • This product has a digital filter to prevent input signals from carrying noise or a chattering. This product has a digital filter to prevent input signals from carrying noise or a chattering. All input channels can be added a digital filter, and the setting can be performed by software.
  • The output circuit, has a built-in Zener diode and the overcurrent protection circuit of the surge voltage protection.
    • Output circuits include zener diodes for surge voltage protection and overcurrent protection circuit. Zener diodes are connected to the output circuits to protect against surge voltages. Similarly, overcurrent protection circuits are fitted to each group of 8ch outputs. The output rating is max. 35VDC, 100mA per ch.
  • Windows/Linux compatible driver libraries are attached.
    • Windows/Linux compatible driver libraries are bundled. Using bundled driver library API-PAC(W32) you can create your own application software for Windows/Linux. Also bundled diagnostic program can check hardware.
