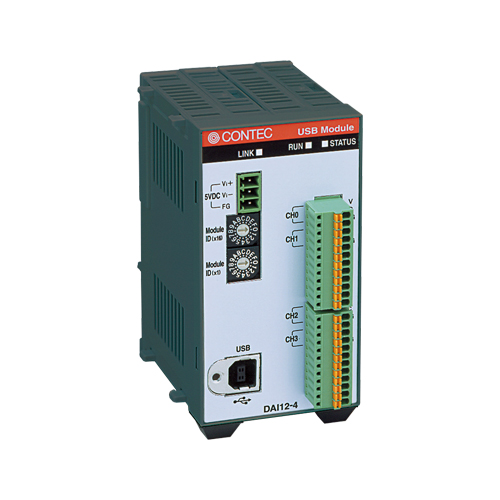

DAI12-4(USB)GY 模拟量输出 USB I/O单元 / 4ch(12bit 100ks/s) / 总线隔离

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

DAI12-4(USB)GY is a USB2.0 compatible analog output terminal module. This product features 4ch 12-bit analog output isolated from PC bus line. Signal lines can be connected directly to the terminals. Includes a bracket for attaching to a 35mm DIN rail for embedded applications. The number of output channels can be increased by purchasing an optional device module. Windows driver is bundled.

• Equipped with the buffer memory (256K data) which can be used in either FIFO or ring format

  • This product includes buffer memory (256K data for analog output) which can be used in either FIFO or ring format. Analog output is performed in the background, independent from software or condition of PC.
• Isolated from the bus by a digital isolator

  • This product is isolated by a digital isolator which improves the noise tolerance of host PC.
• Conversion speed 10µsec (voltage) or 20µsec (current), 12-bit resolution, analog output 4ch

  • This product includes analog outputs (voltage : 10µSec, current : 20µSec, 12-bit, 4ch). USB1.1/USB2.0 compliant high speed transfer (High Speed Mode: 480 Mbps). The voltage or current output range can be set independently for each channel (voltage : ±10V, ±5V, 0 to 10V, 0 to 5V, current : 0 to 20mA). The range is set by software.
• Screw-less connector plug facilitating wiring and plugging/unplugging

  • Screwless connector plug allows you to easily attach and detach wires without using any special tools.
• Capable of being mounted on 35-mm DIN rails

  • The design that is convenient to embedded: On the attachment which a 35mmDIN rail can install directly, it can be attached and detached easily.
• Easy to increase the output channels using an expansion module

  • Adding optional modules (up to 3 units) can easily increase the output channels. The unique structure for connection by stacking enables easy and compact system configuration.
