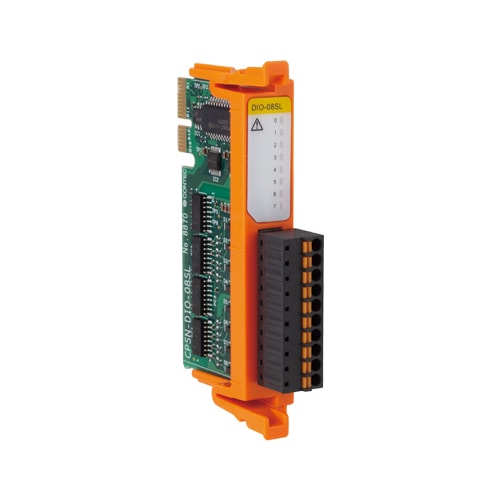

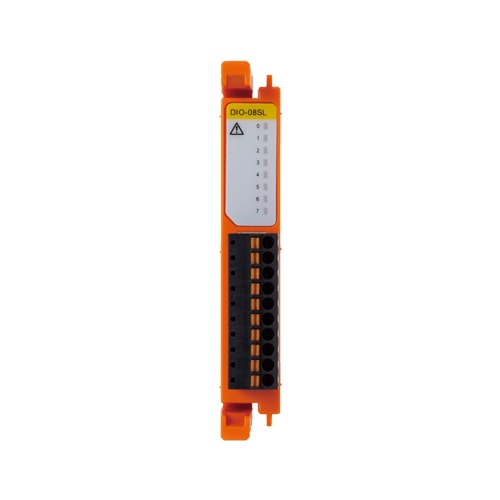

CPSN-DIO-08SL Digital I/O CONPROSYS nano Series I/O module Bi-directional 8ch (isolated 5 to 24VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • The shared inputs and outputs realizes bi-directional signal controlling
  • Opto-coupler Isolated Input / Output
  • Supportable of wide range of external power supplies
  • Diodes for each input channel to prevent a backward flow
  • Input / Output circuits include Zener diodes for surge voltage protection
  • Adaptable to a wide range of temperature between -20 and 60°C
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
CPSN-DIO-08SL Digital I/O CONPROSYS nano Series I/O module Bi-directional 8ch (isolated 5 to 24VDC)
  • CE marking
  • FCC compliant
  • VCCI

Options

Coupler module

Item Item Name
CC-USB271-CPSN4 Modular USB I/O unit (4 slots) / Type-C port / Supports CONPROSYS nano modules
CPSN-MCB271-1-041 CONPROSYS nano Series Remote I/O - Communication Coupler / Modbus Slave / 4x Slot / 2x LAN
CPSN-MCB271-S1-041 CONPROSYS nano Series Remote I/O - Communication Coupler / Modbus Slave / 4x Slot / 1x LAN / 1x RS-232C

Controller unit

Item Item Name
CPSN-PCB271-S1-041 CONPROSYS nano Series Programmable Remote I/O - Communication Coupler (IEC 61131-3 CODESYS) / Modbus Master / 4x Slot / 1x LAN / 1x RS-232C

Device Drivers

Item Item Name
API-DIO(WDM) Windows Driver for Digital I/O Driver

Development Support Tools

Item Item Name
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library

Power Supply / AC Adapter

Item Item Name
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
