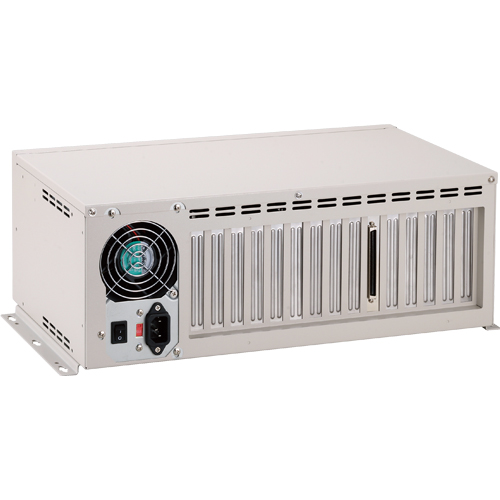

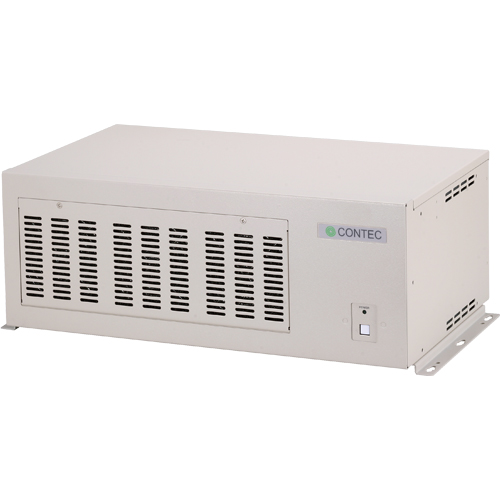

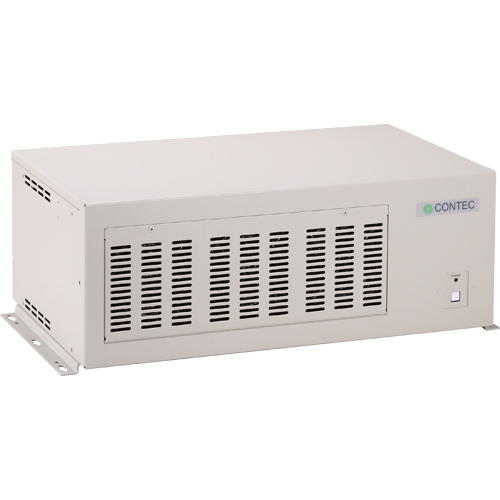

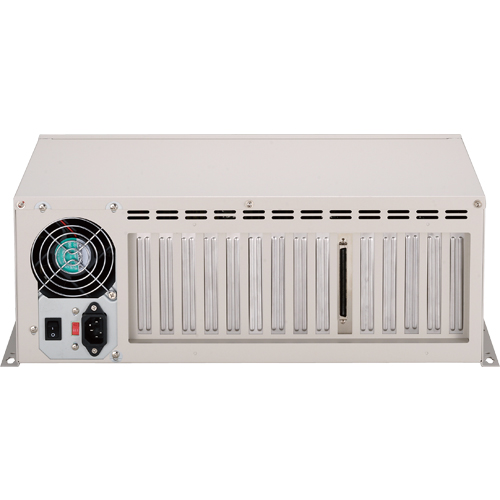

ECH(PCI)BE-H13A PCI Bus Expansion Chassis (Short x 13Slots, with built-in power supply)

  • Discontinued
  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • モーダルで開く
  • End of Repair Service: 2029/09/14

Check a compatible replacement

* The end of repair date may change depending on the situation.

  • Capable of adding PCI bus (5V/32-bit, 33MHz) slots. ECH(PCI)BE-H13A can add 13 slots.
  • Accepting short-size PCI bus boards.
  • Power supply controllable in response to the turning on/off of the PC's power supply.
  • Steel chassis suitable for use in fields.
  • Built-in cooling fan.
  • Rack mount is possible by installing included bracket
  • *
    For details about an extended warranty, please contact us.

Overview / Features

ECH(PCI)BE-H13A is an expansion chassis that adds PCI bus expansion slots to a PC by being connected to the PC via an optional expansion adapter EAD-BE-LPE, EAD(PCI)BE, EAD(LPCI)BE, or EAD(CB)BE.

  • Capable of adding PCI bus (5V/32-bit, 33MHz) slots. ECH(PCI)BE-H13A can add 13 slots.
  • Accepting short-size PCI bus boards.
  • Power supply controllable in response to the turning on/off of the PC's power supply.
  • Steel chassis suitable for use in fields.
  • Built-in cooling fan.
  • Rack mount is possible by installing included bracket
