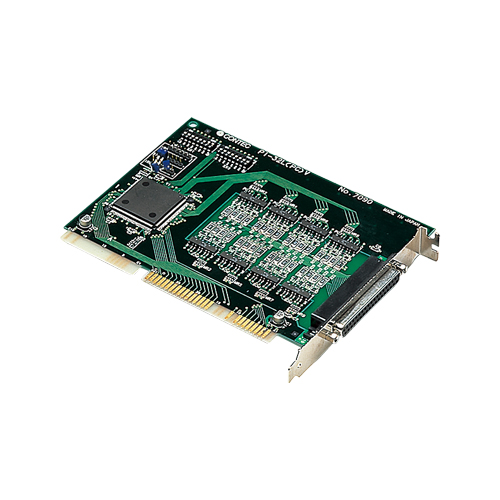

PI-32L(PC)V Digital input ISA card 32ch (isolated 12 - 24VDC)

Discontinued

Standard Warranty3 yrs
Extended WarrantyAvailable

End of Repair Service: 2019/06/28

Check a compatible replacement

* The end of repair date may change depending on the situation.

Noise-protection nature is improving by Opto-isolated input and output.
Four groups and the digital current source type signal of 32 points can be inputted by making eight points into one group.
Simultaneous assignment of a maximum of 2 levels can do two of 32 input signals as an interruption input.
The power supply for a photo-coupler drive is built in, and a built-in power supply or an external power supply can be chosen.

*
For details about an extended warranty, please contact us.

Specifications

Add-on Module

Series
Bus Specification	ISA
Size	Half Size
Used Connector	D-SUB 37-pin (Female)

Digital I/O

Input Channels	32-ch
Output Channels	-
Bi-directional I/O Channels	-
Response Time (Input)	1msec (max.)
Response Time (Output)	1msec (max.)
Operating Voltage (Input)	12 to 24VDC
Operating Voltage (Output)	12 to 24VDC
Input Circuit	Opto-isolated input (for sink current output)
Output Circuit	-
Built-in Power Supply	-
