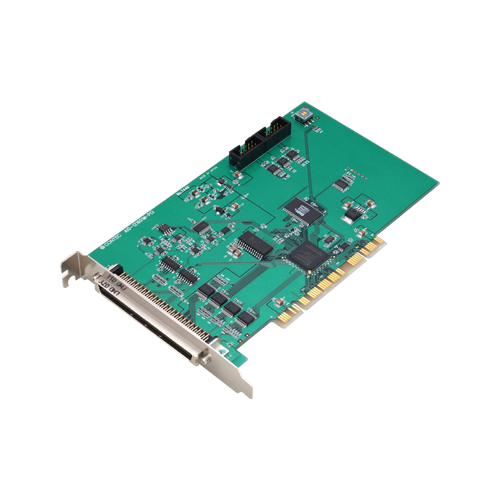

AIO-121601M-PCI Analog I/O PCI Card /16ch AI(12bit 100ks/s) / 1ch AO

Discontinued

Standard Warranty3 yrs

End of Repair Service: 2022/07/15

Integrates the analog signal I/O and digital signal I/O features into one board.
Supports the SC series signal conditioners.
Analog I/O features that supports numerous sampling modes.
Counter features that supports both of the single-phase and two-phase modes.
Synchronized operation of multiple interface boards is supported.
Supports data logger software C-LOGGER

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series
Bus Specification	PCI
Size	Short Size
Used Connector	1.27mm-pitch 96-pin (Male)

Analog I/O

Input Channels	Single-ended 16-ch
Input Range	±10V
ADC Resolution	12-bit
Sampling Rate	10μsec/ch (max.)
Input Buffer Memory	256k Word
Output Channels	1-ch
Output Range	±10V
DAC Resolution	12-bit
Update rate	10μsec (max.)
Output Buffer Memory

Digital I/O

Input Channels	8-ch
Output Channels	8-ch
Bi-directional I/O Channels	-
Response Time (Input)	200nsec (max.)
Response Time (Output)	200nsec (max.)
Operating Voltage (Input)	5VDC-TTL
Operating Voltage (Output)	5VDC-TTL
Input Circuit	Non-isolated TTL level input (Positive logic)
Output Circuit	Non-isolated TTL level output (Positive logic)
Built-in Power Supply	-

Supported OS

Supported OS	Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit)

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
