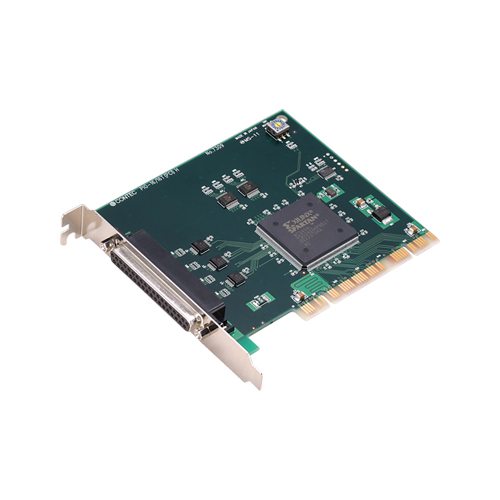

PIO-16/16T(PCI)H Digital I/O PCI card 16ch/16ch (non-isolated 5VDC-TTL)

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

PIO-16/16T(PCI)H is the interface board of the PCI bus conformity which outputs and inputs a TTL level digital signal. The board is capable up to 16 input and 16 output. The driver (API-PAC(W32)) for Windows and Linux appending.

• Unisolated TTL level input, unisolated open-collector output

  • This product has the 16ch of unisolated TTL level input and 16ch of unisolated open-collector output whose response speed is 200nsec. The output rating is max. 30VDC, 40mA per ch.
• You can use all of the input signals as interrupt request signals

  • You can use all of the input signals as interrupt request signals and also disable or enable the interrupt in bit units and select the edge of the input signals, at which to generate an interrupt.
• This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering

  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
• Windows/Linux compatible driver libraries are attached

  • Using the attached driver library API-PAC(W32) makes it possible to create applications of Window/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
• Functions and connectors are compatible with PCI compatible board PIO-16/16T(PCI)

  • The functions same with PCI compatible board PIO-16/16T(PCI) are provided. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.
