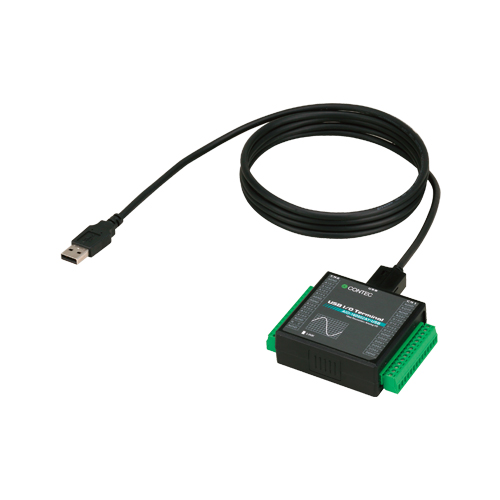

AIO-160802AY-USB Analog I/O USB I/O Unit / 8ch AI(16bit 100ks/s) / 2ch AO - Y Series

Standard Warranty1 yr
Extended WarrantyAvailable

Input 10µsec/ch, 8ch, output 10µsec, 2ch, 16bit resolution
Compatible to USB1.1/USB2.0 and not necessary to power this product externally as the bus power is used.
Sampling can be driven by a clock or by various triggers
Equipped with the buffer memory (1K data) which can be used in either FIFO or ring format
Terminal connector facilitating wiring

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series	USB Y(Mobile)
Bus Specification	USB
Size	Y Type
Used Connector	2x Screw terminal block 14-pin

Analog I/O

Input Channels	Single-ended 8-ch
Input Range	±10V
ADC Resolution	16-bit
Sampling Rate	10μsec/ch (max.)
Input Buffer Memory	1k Word
Output Channels	2-ch
Output Range	±10V
DAC Resolution	16-bit
Update rate	10μsec (max.)
Output Buffer Memory	1k Word

Digital I/O

Input Channels	4-ch
Output Channels	4-ch
Bi-directional I/O Channels	-
Response Time (Input)	200nsec (max.)
Response Time (Output)	200nsec (max.)
Operating Voltage (Input)	3.3VDC-LVTTL
Operating Voltage (Output)	3.3VDC-LVTTL
Input Circuit	Non-isolated LVTTL level input (Positive logic)
Output Circuit	Non-isolatedLVTTL level output (Positive logic)
Built-in Power Supply	-

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
