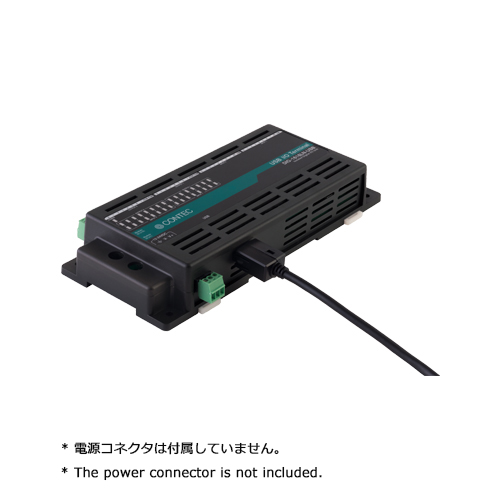

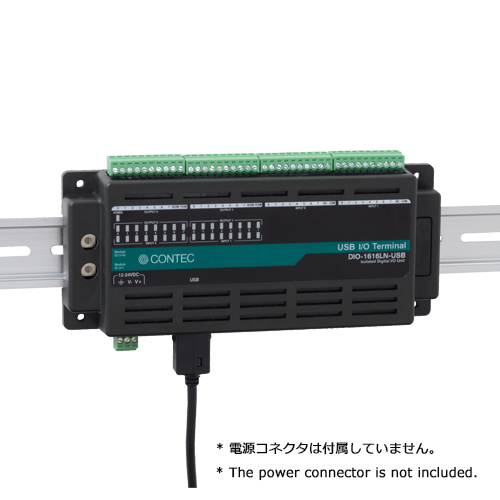

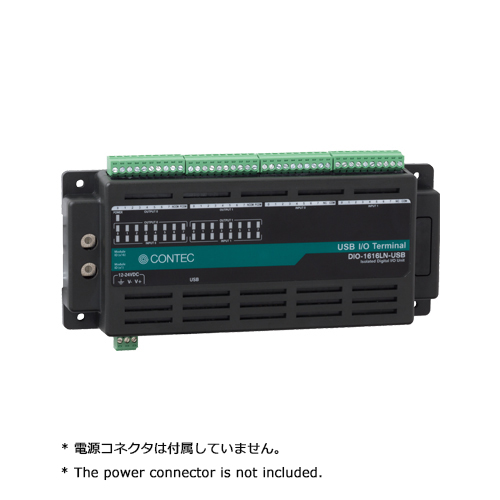

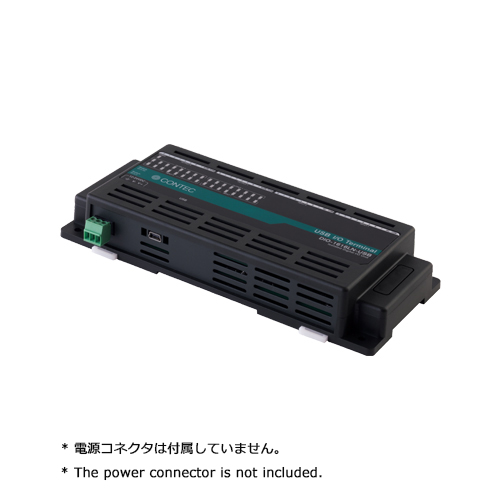

DIO-1616LN-USB N Series for USB. Isolated Digital I/O Unit (16ch DI, 16ch DO)

16 channels of Opto-coupler isolated inputs (compatible with current sink and current source outputs) and 16 channels of Opto-coupler isolated open-collector outputs (compatible with current sink type)
8 input signals can be used as interrupt request signals
Equipped with digital filter to prevent wrong recognition of input signals from carrying noise or a chattering
Zener diode for surge voltage protection and the circuit for overcurrent protection
Operation with USB bus power/12 - 24VDC power supply
Windows/Linux support device driver

机能・规格

系列	USB N(Compact)
总线规格	USB
类型	N Type
所用连接器	4x 3.5mm-pitch 10-pin 2-piece terminal block

输入点数	16-ch
输出点数	16-ch
双向输入输出点数	-
响应时间（输入）	200μsec (max.)
响应时间（输出）	200μsec (max.)
工作电压（输入）	12 to 24VDC
工作电压（输出）	12 to 24VDC
输入电路	Opto-isolated input (for sink current output); Opto-isolated input (for source current output)
输出电路	Opto-isolated open-collector output (current sink type)
内置外部电路用电源	-

支持的操作系统	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Linux
