New Product Release : Industrial Edge AI Computers DX-U1100 Series with NVIDIA® Jetson Nano™

  • Product & Service

Japan、Africa、Asia、Europe、Middle East、North America、Oceania、Latin America

The information included in this press release is current as of the publication date. The sales conditions, price, and specifications may be changed without notice.

Contec Co., Ltd. has developed an edge AI computer for industrial use, equipped with NVIDIA® Jetson Nano™, and will begin receiving orders for the DX-U1100 series on February 1, 2021.

DX-U1100-2E0211
DX-U1100-2E0211

DX-U1100P1-2E0211
DX-U1100P1-2E0211 with expansion slots

There has been an increase in expectations for AI technology due to the significant leaps and bounds that have been made in recent years in deep learning technology, and research and development toward the goal of practical application in a variety of fields has been proceeding. In particular, in the industrial sector, the introduction of IoT and 5G communication technologies has allowed for real-time collection of detailed field data, with AI allowing rapid response to changes in the situation, innovating brand new business models and truly ushering in an age of digital transformation (DX).

Application development using NVIDIA’s Jetson developers’ kit has been extremely popular for AI inference execution environments being used out in the field, and by implementing applications on industrial computers that emphasize practicality, it will become possible to meet a wide range of market needs.

Our new product, the DX-U1100 series, is a general-purpose industrial edge AI computer with an emphasis on practicality equipped with an NVIDIA® Jetson Nano™ module. Equipped with two Gigabit LAN ports, an HDMI port, two USB ports, general I/O ports, and an RTC (real-time calendar/clock), and with flexible installation and environmental resistance, it can be comfortably used for practical applications.

As for the software environment, Ubuntu comes pre-installed just like the Jetson developer kit, and the NVIDIA JetPack™ SDK is available, so you can run applications created with the developer kit.

The new product also comes in a PCI Express slot model and enables expanded functionality by means of Contec’s rich variety of low-profile PCI Express cards, including analog input and serial communication cards.

Contec will continue to develop easy-to-use hardware platforms for edge AI under the DX series lineup, utilizing the development techniques of industrial computers and IoT devices. In April 2021, we plan to launch the upgraded DX-U1200 model, equipped with the NVIDIA® Jetson Xavier™ NX.

Main Features

  • Edge AI accelerator equipped with NVIDIA® Jetson Nano™

    Equipped with NVIDIA® Jetson Nano™, the DX-U1100 series can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.

  • Long-term supply and maintenance

    Long-term product supply is provided, as well as repair and maintenance services. This can significantly reduce life cycle costs, including verification and modification man-hours that were needed with every model change.

  • Highly reliable and long-life components

    The high-reliability long-life design utilizes accumulated knowledge about BOX-PC embedded computers. The DX-U1100 can be reliably used for high-availability systems.

  • Two Gigabit LAN ports for alternating connections between different network layers

    This product is equipped with two Gigabit LAN ports. This makes it ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.

  • Flexible installation

    With the L-shaped mounting bracket (included as standard), the product can be installed on a wall or on the back of a VESA (100 mm) mount-compatible LCD monitor. It can also be mounted on a 35-mm DIN rail with a DIN rail adapter (included as standard).

  • Supports ambient temperatures from -20°C to 60°C

    This product can be used in various environments with ambient temperatures of −20°C to 60°C.

Specifications

Model DX-U1100-2E0211 DX-U1100P1-2E0211
Jeston Module Module NVIDIA® Jetson Nano™
CPU Quad Core ARM Coretex-A57 MPCore processor
GPU 128 NVIDIA® CUDA® cores
NVIDIA Maxwell™ architecture
Memory 4GB 64bit LPDDR4
Storage 16 GB eMMC
Software OS Ubuntu 18.04.4 LTS
SDK JetPack
Interfaces USB USB 3.0 Type A x 1, USB 2.0 Type A x 1, USB 2.0 microB x 1 (for debugging)
Display Interfaces HDMI x 1, DisplayPort(eDP) x 1
Ethernet Gigabit Ethernet x 2
M.2 M.2 Key-E, M.2 Key-B
External storage microSD
Digital I/O DI x4 (isolated), DO x2 (isolated) (2 DIs and 2 DOs are for exclusive use)
PCIe slot - Low Profile PCI Express(x1) x 1
Other RTC built in RTTC built in
Internal GPIO (for evaluation), MIPI CSI-2 (for evaluation)
Physical Dimension (mm) 160(Ｗ)ｘ92(Ｄ)ｘ44(H) (Does not include protrusions) 160(Ｗ)ｘ92(Ｄ)ｘ75(H) (Does not include protrusions)
Rated Input Voltage 12 to 24VDC
Operating temperature -20 to 60°C(with PCIe card : -20 to 50°C) with 0.7m/s airflow
*Derating may occur
Standard CE Marking (EMC Directive Class A, RoHS Directive), FCC Class A, VCCI Class A

DX Series

Digital transformation (DX) enriches people’s lives by transforming with the evolution of digital technology. One of Contec’s solutions to achieve this is the DX series. The DX series aims to provide customers with new technologies such as AI, IoT, and 5G, which are indispensable for the realization of digital transformation, in a more familiar and easy-to-use manner.

Application Example

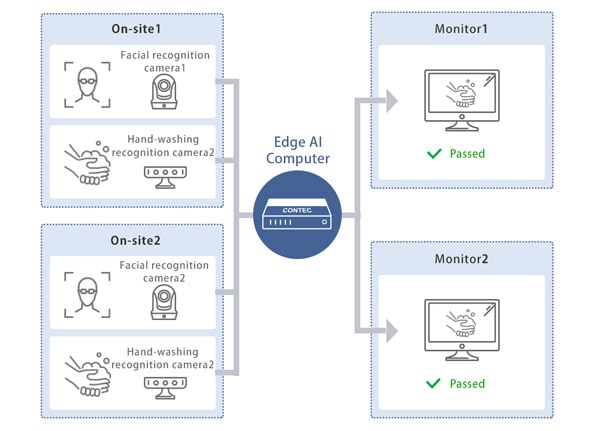

The new product will be utilized as the edge AI computer for Contec’s hand-washing judgment system that applies AI technology. Both high edge computing capabilities and flexible on-site installation are required for this system that applies AI technology to recognize the correct hand-washing procedure from detailed images taken with a 3D camera.

System ImageSystem Image
