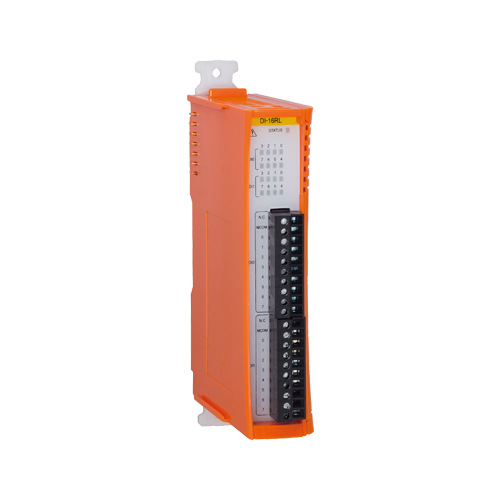

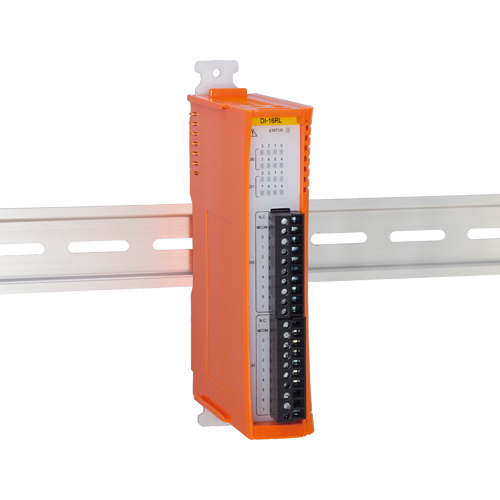

CPS-DI-16RL Digital input CONPROSYS I/O module 16ch (negative-common isolated 12 - 24VDC)

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is an extension module with isolated digital input interface and operates along with the stack type controller of our CONPROSYS series. CPS-DI-16RL have the optocoupler isolated input 16 channels (supporting current source output) whose response speed is 200μsec or less All of the input signals are usable as interrupt events.

• Optocoupler isolated input (supporting current source output)

  • CPS-DI-16RL have the optocoupler isolated input 16 channels (supporting current source output) whose response speed is 200µsec or less.
• All of the input signals are usable as interrupt events.

  • You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
• Digital filter to prevent input signals from carrying noise or a chattering.

  • This product has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
• Output circuits include zener diodes for surge voltage protection.

  • Zener diodes are connected to the output circuits to protect against surge voltages. The rated output is 35VDC, 100mA to the maximum per channel.
• Adaptable to a wide range of temperature between -20 and +60°C

  • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
• Equipped with the LED for an operation check

  • The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
