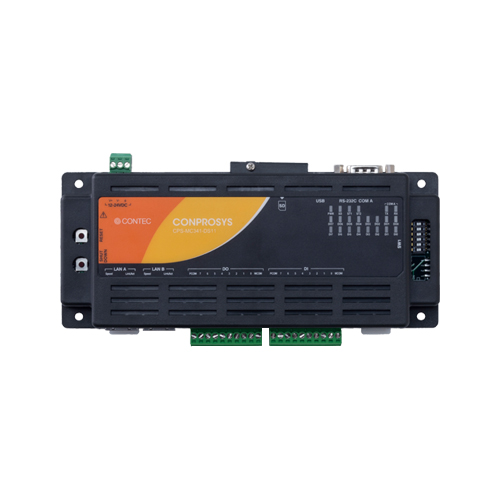

CPS-MC341-DS11-111 CONPROSYS M2M Controller - Integrated Type / 1x LAN + HUB / 8x DI / 8x DO / 1x RS-232C

Standard Warranty3 yrs
Extended WarrantyAvailable

Measurement and Upload
Simple Router Function
Web Monitoring and Web Task Script
Message Communication Function
Compact Design
Adaptable to a temperature range between -20 and +60°C

*
For details about an extended warranty, please contact us.

Specifications

Controller Unit

Series	CONPROSYS M2M Controller
Communication Ports	Ethernet (LAN)
Programming	CONPROSYS VTC
Stack bus	-
Function	CDS data transfer (https); Modbus/TCP slave

Digital I/O

Input Channels	8-ch
Output Channels	8-ch
Bi-directional I/O Channels	-
Response Time (Input)	200μsec (max.)
Response Time (Output)	200μsec (max.)
Operating Voltage (Input)	12 to 24VDC
Operating Voltage (Output)	12 to 24VDC
Input Circuit	Opto-isolated input (for sink current output)
Output Circuit	Opto-isolated open-collector output (current sink type)
Built-in Power Supply	-

Analog I/O

Input Channels	-
Input Range	-
ADC Resolution	-
Sampling Rate	-
Input Buffer Memory
Output Channels	-
Output Range	-
DAC Resolution	-
Update rate	-
Output Buffer Memory

Counter

Number of Channels	-
Counting System	-
Response speed	-

Serial Comm.

Number of Channels	1x RS-232C [ASYNC]
Transmission Speed	110 ~ 115,200bps
Isolation Property
Transmission Method
