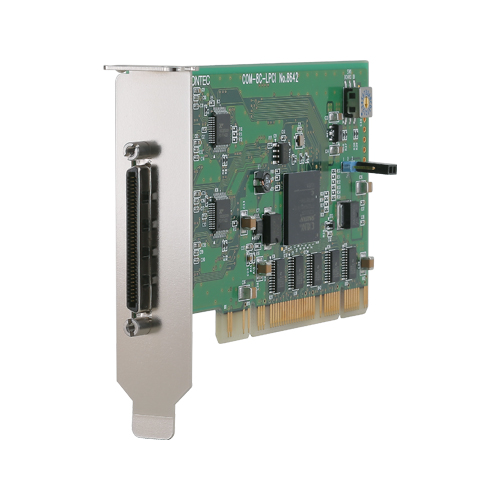

COM-8C-LPCI Serial Communication Low Profile PCI Card RS-232C 8ch

Standard Warranty3 yrs
Extended WarrantyAvailable

Max.921,600bps RS-232C Serial Communication
Possibly used as Windows, Linux-standard COM ports, using the bundled driver library
Max. 16 cards can be installed as configured in the range COM1-COM256.
Each channel is equipped with separate 128-byte FIFO buffers for transmit and receive

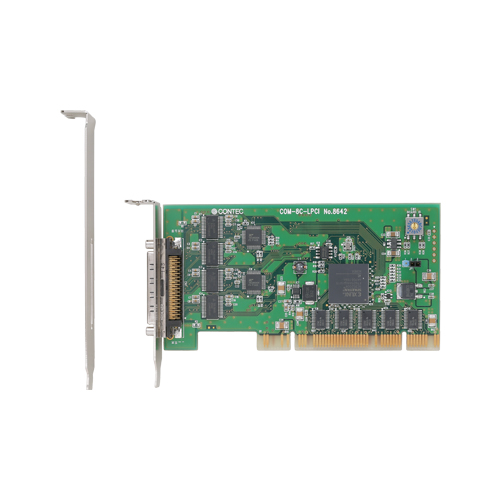

Support for Low Profile size slot / standard size slot (bundled with bracket)
The control line for RS-232C can be controlled and monitored by software.

*
For details about an extended warranty, please contact us.

Supported OS

Specifications

Add-on Module

Series	-
Bus Specification	PCI
Size	Low Profile
Used Connector	0.8mm-pitch 68-pin (Female)

Serial Comm.

Number of Channels	8x RS-232C [ASYNC]
Transmission Speed	2 ~ 921,600bps
Isolation Property	-
Transmission Method	RS-232C [Asynchronous]

Supported OS

Supported OS	Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux

*
The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.
