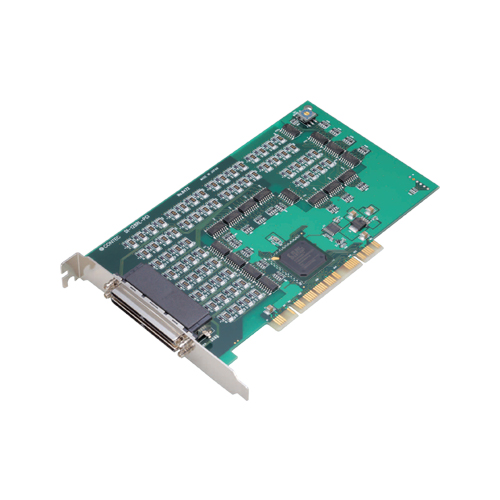

DI-128RL-PCI Digital input PCI card 128ch (negative-common isolated 12 - 24VDC)

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Opto-coupler isolated input (compatible with current source output signals)
  • Opto-coupler bus isolation
  • You can use 16 input signals as interrupt request signals.
  • Windows/Linux compatible driver libraries are attached.
  • This product has a digital filter to prevent wrong recognition of input signals from carrying noise or a chattering.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
DI-128RL-PCI Digital input PCI card 128ch (negative-common isolated 12 - 24VDC)
  • CE marking
  • FCC compliant
  • VCCI

Options

Device Drivers

Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver

Development Support Tools

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
VI-DAQ VI Library of data acquisition for LabVIEW

Cable

Item Item Name
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector

Terminal

Item Item Name
DTP-3A Screw Terminal (M3 x 37)
DTP-4A Screw Terminal (M2.6 x 37)
DTP-64A Screw Terminal (M3 x 96)
EPD-100A Screw Terminal (M3 x 100)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Other Accessories

Item Item Name
CCB-96 Connector conversion card

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
