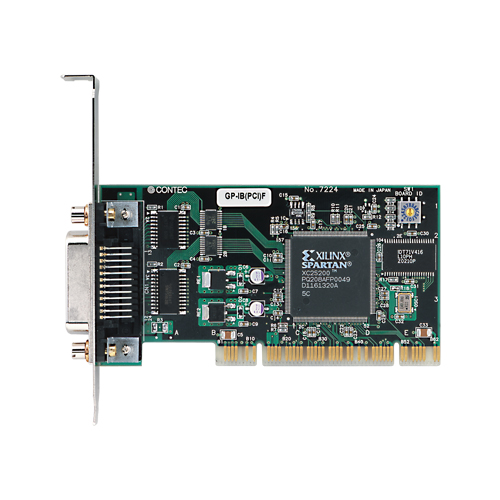

GP-IB(PCI)F High-performance & High-speed GPIB Interface Board for PCI

Capable to communicate with GPIB communication which is compatible to IEEE-488.1/488.2 standards at 1.5 M byte/sec maximum
Supports bus master operation
Internal 2Kbyte FIFO buffers for send and receive
Employs a high speed GPIB controller developed by CONTEC and provides steady-supply
Built-in SPAS event function (when slaving)
Windows/LabVIEW compatible support software is offered.
