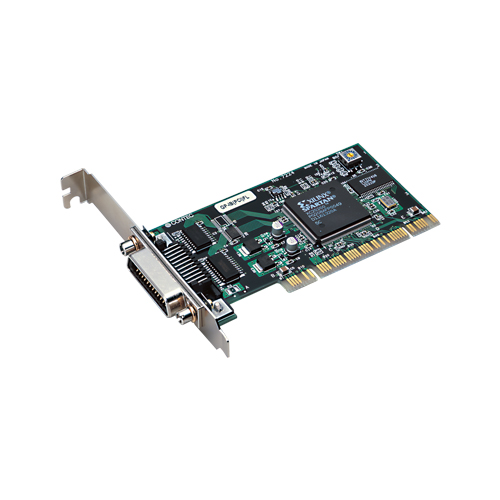

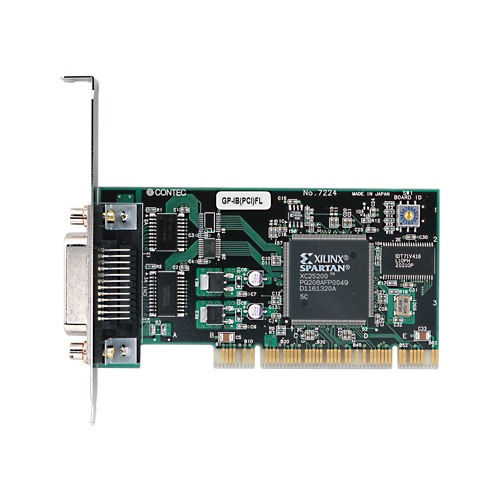

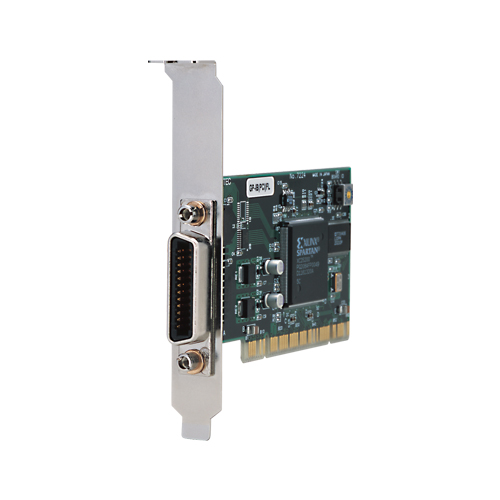

GP-IB(PCI)FL Low Price & High-speed IEEE-488.2 GPIB Interface Board for PCI

  • Standard Warranty3 yrs
  • Extended WarrantyAvailable
  • Capable to communicate with GPIB communication which is compatible to IEEE-488.1/488.2 standards at 1.5 M byte/sec maximum
  • Supports bus master operation
  • Internal 2Kbyte FIFO buffers for send and receive
  • Employs a high speed GPIB controller developed by CONTEC and provides steady-supply
  • Built-in SPAS event function (when slaving)
  • Windows/LabVIEW compatible support software is offered.
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
GP-IB(PCI)FL Low Price & High-speed IEEE-488.2 GPIB Interface Board for PCI
  • CE marking
  • VCCI

Options

Device Drivers

Item Item Name
API-GPIB(98/PC) Windows version GPIB Communication Driver
API-GPIB(LNX) Linux Driver for GPIB
API-GPLV(W32) Windows version LabVIEW GPIB Communication Driver
API-TIMER(W32) Timer Driver

Development Support Tools

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development

Cable

Item Item Name
PCN-T02 GPIB Cable (2m)
PCN-T04 GPIB Cable (4m)

Other Accessories

Item Item Name
CN-GP/C GPIB Counter Adapter

Extended Warranty Service

Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
