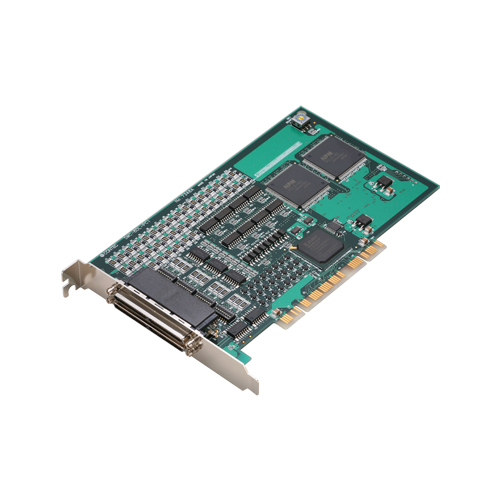

SMC-8DL-PCI High-speed line driver output 8 axis motion control board for PCI

Capable of multi-axis independent control and pulse output up to 9.8Mpps
Capable of controlling the jogging at fixed speed or by linear/S-curve acceleration and deceleration, positioning,and origin returning
Provided with various input/output formats enabling connection to an encoder input circuit as well as pulse output circuit
With the multi-axis synchronization control function,capable of aligning the timing for operation start and end
Capable of speed and position overriding
Comparator circuits allowing the set value and counter value to be compared
