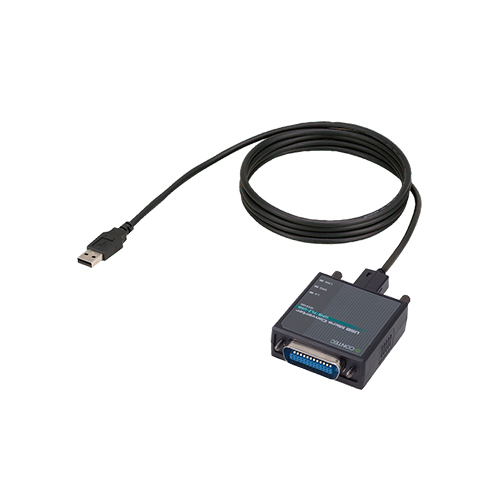

GPIB-FL2-USB High Speed IEEE-488.2 I/F Micro Converter for USB2.0

  • Standard Warranty1 yr
  • Extended WarrantyAvailable
  • Capable to communicate with GPIB communication which is compatible to IEEE-488.1/488.2 standards at 1.5 M byte/sec maximum
  • Compatible to USB2.0/USB1.1 and bus power-driven eliminating the need for external power
  • Employs a buffer memory, 2K bytes for transmission and 2K bytes for reception.
  • Employs a high speed GPIB controller developed by CONTEC and provides steady-supply
  • Built-in SPAS event function (when slaving)
  • Windows/LabVIEW compatible support software is offered
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
GPIB-FL2-USB High Speed IEEE-488.2 I/F Micro Converter for USB2.0
  • CE marking
  • FCC compliant
  • VCCI

Options

Device Drivers

Item Item Name
API-GPIB(WDM) for USB GPIB Common Driver API-GPIB(WDM) for USB

Development Support Tools

Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development

Cable

Item Item Name
PCN-T02 GPIB Cable (2m)
PCN-T04 GPIB Cable (4m)

Other Accessories

Item Item Name
CN-GP/C GPIB Counter Adapter
