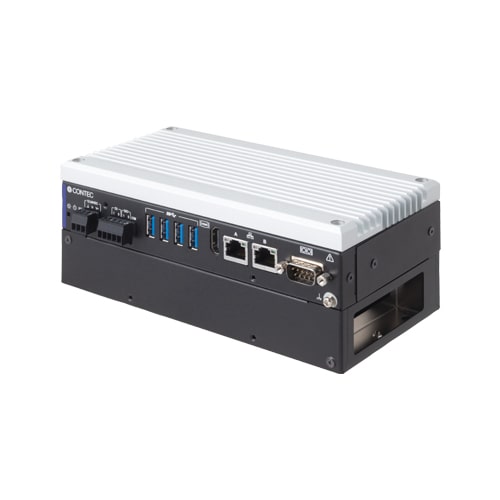

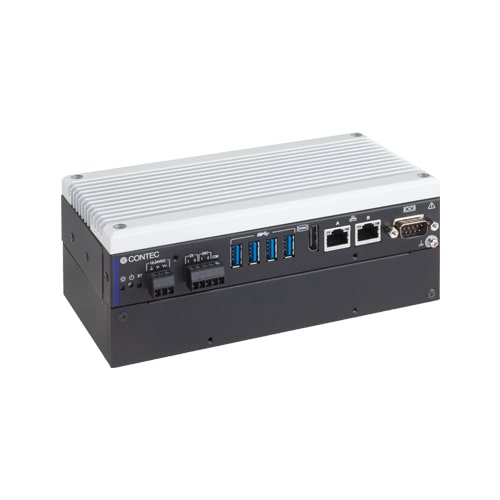

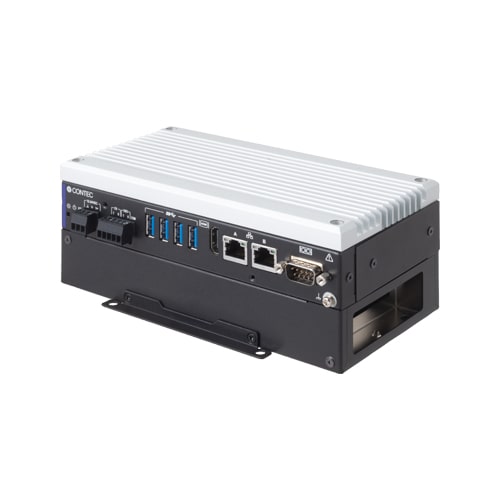

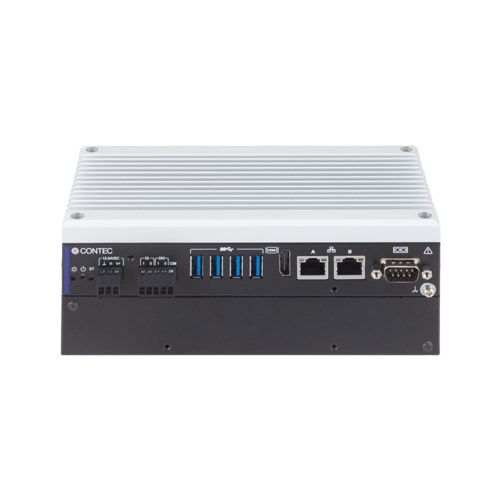

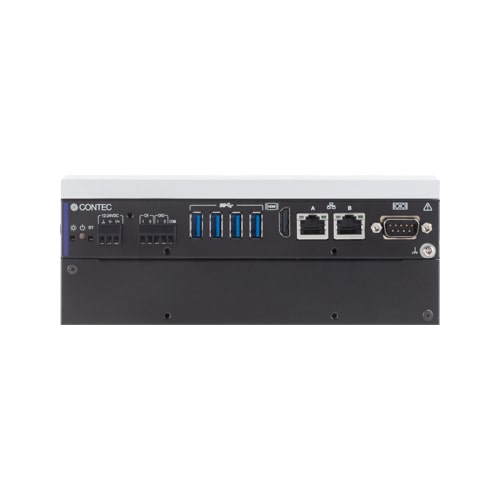

DX-U1220P1 Industrial Edge AI Computer DX-U1000 - Fanless Embedded PC / NVIDIA® Jetson Xavier NX™ / Carmel ARM v8.2 / 256GB NVMe / 1x PCIe(x1) / Simple Anti-dust

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is an industrial computer equipped with the NVIDIA® Jetson Xavier NX™ module, suitable for AI inference processing. It is equipped with 2 Gigabit LANs, HDMI, 4 USBs, general-purpose I/O, serial ports, and RTC, realizing flexible installation and environmental resistance. In addition, it is equipped with large-capacity NVMe storage as standard, so it can be used safely for practical applications. As with the developer kit, the software environment is pre-installed with Ubuntu, and the JetPack SDK is available, and applications created with the developer kit can be run. As a simple dustproof measure, this product comes with a metal plate (already attached to this product) and a connector cap to prevent dust and dirt from entering through the ventilation holes. As with the developer kit, the software environment is pre-installed with Ubuntu, and the JetPack SDK is available, and applications created with the developer kit can be run. It is equipped with a low profile PCI Express slot, and functions can be expanded with our wide range of low profile PCI Express cards.

Usage Examples

• Edge AI accelerator equipped with NVIDIA® Jetson Xavier NX™ module.

  • Equipped with NVIDIA® Jetson Xavier™, the DX-U1200 series can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.
• Equipped standard NVMe 256GB storage

  • The standard-equipped high-capacity NVMe 256GB storage offers reliable operation with no need to worry about the capacity of the Jetson Xavier NX™ module’s eMMC.
• Equipped with various I/F such as USB3.2 Gen2 4 ports

  • Multiple USB cameras can be connected simultaneously for visual inspection of production lines. Equipped with a serial port (RS-232C/422A/485 1 port) convenient for connecting peripheral devices and sensors.
• Two Gigabit LAN ports for alternating connections between different network layers

  • This product is equipped with two Gigabit LAN ports. This makes it ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
• "Power failure protection system" features power-off without OS shutdown

  • Using the JetPack/L4T version provided by our company, it supports power failure protection function. It can be used by enabling the power-off protection function in BIOS and Linux settings.
• Equipped with 1x Low Profile PCI Express(x1) slot

  • This product also equipped with a PCI Express(x1) slot and enables expanded functionality by means of CONTEC's rich variety of low-profile PCI Express cards, including analog input and serial communication boards.
