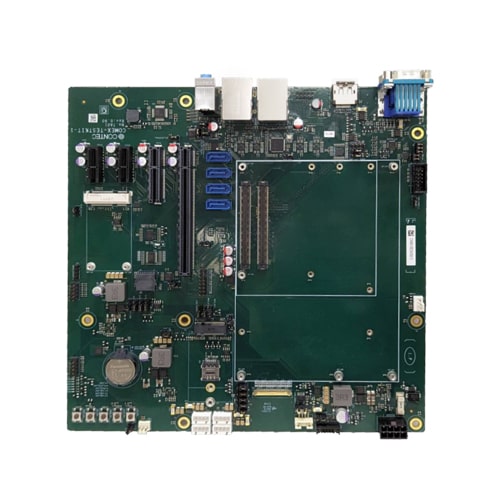

COMEX-TESTKIT-1 Industrial Motherboard / Micro-ATX / COM Express Type 6, Carrier Board

Standard Warranty2 yr

Module interface Revision 3.0 and Type 6
Supporting Basic and Compact form factors
Micro-ATX dimension (9.6 x 9.6inch / 244 x 244mm)
Equipped Mini-PCIe slots & M.2 key B
Accommodates both ATX and DC power inputs for versatile applications
With Port 80/81 debug port

Specifications

Form Factor

Type	Micro ATX

Software Support

Supported OS	-

Core System

Processor	-
CPU Generation (Development code)	-
CPU socket	-
Memory	-
RAS	-
GPU	-
AI Performance	-
Security	TCG TPM 2.0

Interface

Video	1x DisplayPort (v1.4); 1x Analog RGB; 1x LVDS
LAN	2x 1000BASE-T/100BASE-TX/10BASE-T
Wireless	-
Audio	1x Line out; 1x Line in; 1x Mic-in; -
I/O	4x USB3.2 Gen2; 1x RS-232C
Memory card	-

Internal Interface

Video	-
LAN	-
Audio	-
I/O	2x USB2.0; 1x RS-232C/422A/485
Power connector	-

Expansion Slot

Expansion bus	1x M.2 Key B (3052); 1x PCI Express(x16); 1x PCI Express(x4); 1x PCI Express(x1); 1x Mini PCI Express
Drive bay	-

Power

Input voltage	12VDC

Environment

Operating temperature	0 to 60°C (32 to 140°F)
Storage temperature	-40 to 80°C (-40 to 176°F)
Standards & Certifications	-
