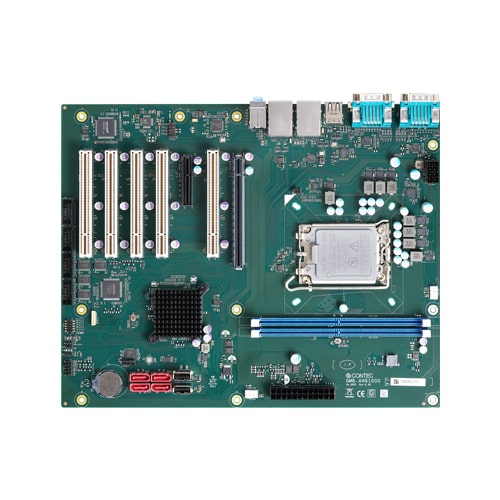

GMB-AH61000 Industrial Motherboard / ATX / Intel 13th Gen. Processors (Raptor Lake-S + H610E) / (LGA1700) / 1x PCIe5.0 (x16), 1x PCIe3.0 (x4), 5x PCI

Standard Warranty2 yr

Intel® 12th / 13th Gen. Alder Lake-S / Raptor Lake-S Platform
Multi-display Supported
Dual Gigabit Ethernet by Intel controller
Extend Peripherals Freely Rich Interface

BUY NOW - U.S. Customers can purchase online in the Contec Americas eShop

Specifications

Form Factor

Type	ATX

Software Support

Supported OS	Windows 10 IoT Enterprise 2021 LTSC 64-bit

Core System

Processor	Core i9-13900TE; Core i9-13900K; Core i9-13900E; Core i9-12900TE; Core i9-12900K; Core i9-12900E; Core i7-13700TE; Core i7-13700K; Core i7-13700E; Core i7-12700TE; Core i7-12700K; Core i7-12700E; Core i5-13600K; Core i5-13500TE; Core i5-13500E; Core i5-12600K; Core i5-12500TE; Core i5-12500E; Core i3-13100TE; Core i3-13100E; Core i3-12100E; Core i3-12100TE; Pentium Gold G7400TE; Pentium Gold G7400E; Celeron G6900E; Celeron G6900TE
CPU Generation (Development code)	13th Gen. (Raptor Lake-S); 12th Gen. (Alder Lake-S)
CPU socket	LGA1700
Memory	up to 64GB
RAS	Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
GPU	-
AI Performance	-
Security	TCG TPM 2.0 (Optional)

Interface

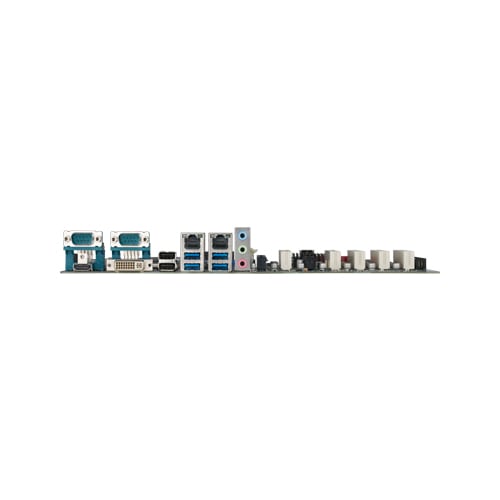

Video	1x HDMI; 1x DVI-I
LAN	2x 1000BASE-T
Wireless	-
Audio	1x Line out; 1x Line in; 1x Mic-in
I/O	4x USB3.2 Gen1 (USB3.0); 2x USB2.0; 2x RS-232C/422A/485
Memory card	-

Internal Interface

Video	-
LAN	-
Audio	-
I/O	2x USB2.0; 4x RS-232C
Power connector	1x 24-pin ATX; 1x 8-pin ATX 12V

Expansion Slot

Expansion bus	1x PCI Express 5.0(x16); 1x PCI Express(x4); 5x PCI
Drive bay	-

Power

Input voltage	-

Environment

Operating temperature	0 to 60°C (32 to 140°F)
Storage temperature	-20 to 80°C (-4 to 176°F)
Standards & Certifications	CE; FCC Class B; UKCA; VCCI Class B
