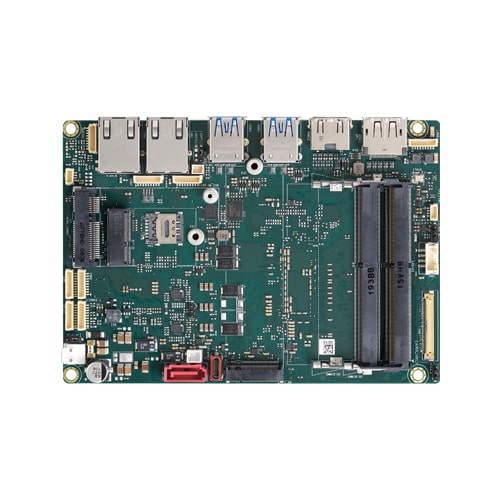

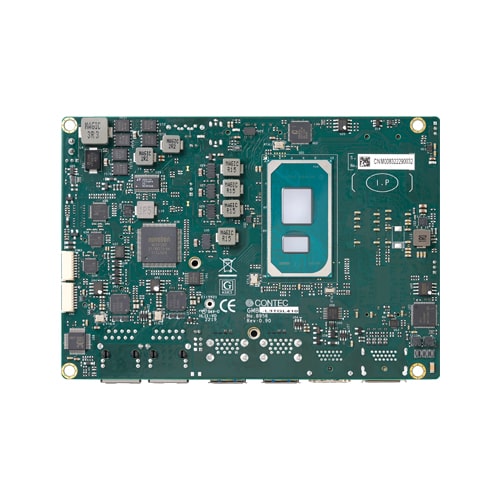

GMB-L3TGL Industrial Motherboard / 3.5" SBC / Intel® 11th Gen. i7-1185G7E (Tiger Lake-UP3 SoC) / DC Power Supply

  • Standard Warranty2 yr
  • Intel® 11th Generation Core™ i3/i5/i7 Processor (Tiger Lake-UP3 Platform)
  • Supported 2x DDR4-3200 SO-DIMM, up to 64GB
  • 2x RJ-45 LAN port by 2.5GdE + 1GbE by internal (pinheaded)
  • Equipped 1 x Full-sized Mini PCIe, 1 x M.2 Key M (2280) , and 1 x M.2 Key E (2230)
  • Supported triple-display, LVDS, HDMI, and DisplayPort (Internal Type C support DP only)

Specifications

Form Factor

Type 3.5-inch

Software Support

Supported OS Windows 10 IoT Enterprise 2021 LTSC 64-bit

Core System

Processor Core i7-1185G7E; Core i5-1145G7E; Core i3-1115G4E
CPU Generation (Development code) 11th Gen. (Tiger Lake UP3)
CPU socket -
Memory up to 64GB
RAS Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer
GPU -
AI Performance -
Security TCG TPM 2.0

Interface

Video 1x DisplayPort; 1x HDMI; 1x LVDS
LAN 2x 2500BASE-T
Wireless -
Audio -
I/O 4x USB3.2 Gen2
Memory card -

Internal Interface

Video 1x USB 3.1 Gen1 (USB3.0) Type-C [DP Alt Mode]
LAN
Audio 1x Line out; 1x Mic-in
I/O 2x USB2.0; 2x RS-232C; 1x RS-232C/422A/485
Power connector -

Expansion Slot

Expansion bus 1x M.2 Key E (2230); 1x M.2 Key M (2280); 1x Mini PCI Express
Drive bay -

Power

Input voltage 12 to 24VDC

Environment

Operating temperature 0 to 60°C (32 to 140°F) w/ 0.7m/s airflow
Storage temperature -10 to 70°C (14 to 158°F)
Standards & Certifications CE; FCC Class A
