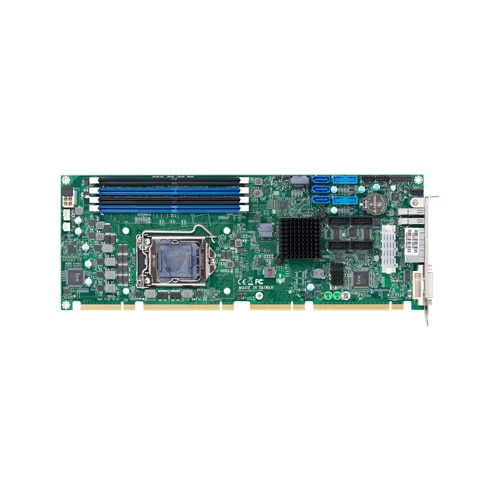

GSPI-Q1700-LLVA Industrial Single Board Computer - PICMG 1.3 / Intel 6th, 7th Gen. Processors (Kaby Lake-S / Skylake -S Platform) / Q170PCH (LGA1151)

  • Standard Warranty2 yr
  • Uses processors from the 6th and 7th Gen. of the Intel® Core™ processor family
  • Support multiple displays by DVI-I(DVI-D+VGA) and HDMI
  • Rich variety of interfaces for freely expandable peripherals

Specifications

Form Factor

Type PICMG 1.3

Software Support

Supported OS Windows 10; Windows 8.1; Windows 7

Core System

Processor Core i7-7700; Core i7-7700T; Core i7-6700; Core i7-6700TE; Core i5-7500; Core i5-7500T; Core i5-6500; Core i5-6500TE; Core i3-7101E; Core i3-7101TE; Celeron G3930E; Celeron G3930TE; Celeron G3900; Celeron G3900TE
CPU Generation (Development code) 7th Gen. (Kaby Lake-S); 6th Gen. (Skylake-S)
CPU socket LGA1151
Memory up to 32GB
RAS Hardware monitor (Fan speed / Temperature / Voltage)
GPU -
AI Performance -
Security TCG TPM 2.0

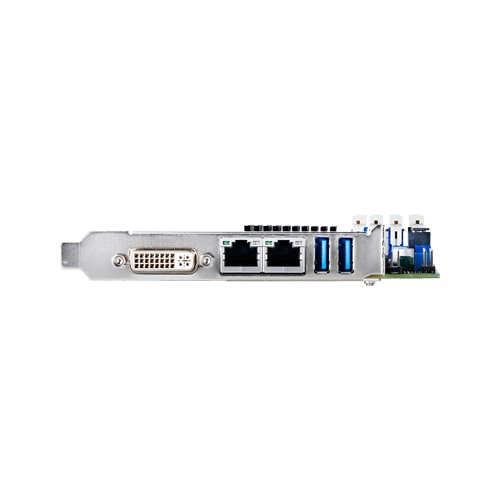

Interface

Video 1x DVI-I
LAN 2x 1000BASE-T
Wireless -
Audio -
I/O 2x USB3.2 Gen2 (USB3.1)
Memory card -

Internal Interface

Video 1x HDMI
LAN -
Audio 1x Line out; 1x Line in; 1x Mic-in
I/O 8x USB3.2 Gen2; 2x USB2.0; 2x RS-232C; 2x RS-232C/422A/485
Power connector -

Expansion Slot

Expansion bus 1x PCI Express(x8) + 2x PCI Express(x4); 1x PCI Express(x16); 2x PCI Express(x8)
Drive bay -

Power

Input voltage -

Environment

Operating temperature 0 to 60°C (32 to 140°F)
Storage temperature -20 to 80°C (-4 to 176°F)
Standards & Certifications CE; FCC Class A
