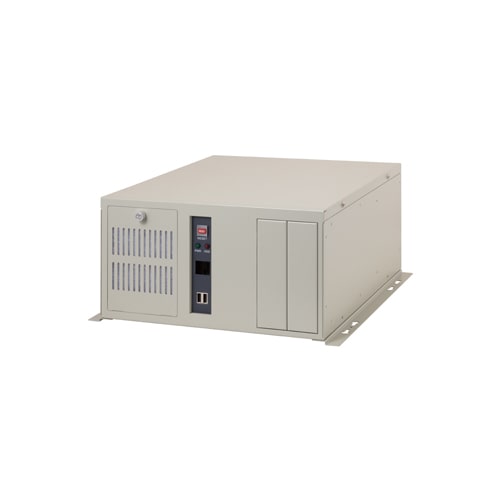

SPF10SQ1700 Industrial Computer SPF10SQ1700 - Wallmount PC / Intel 6th/7th Gen. Core (Skylake/Kaby Lake + Q170) / 1x PCIe(x16) / 7x PCI / AC Power Supply

  • Standard Warranty3 yr
  • Extended WarrantyAvailable
  • Compatible with Intel ® Core ™ processor series Skylake/Kaby Lake
  • Compact wall-mounted design
  • CPU and chipset designed for embedded devices
  • Expandable to up to eight PCI and PCI Express slots
  • Rich variety of interfaces for freely expandable peripherals
  • Supports also Windows 7 Pro and WES 7
  • *
    For details about an extended warranty, please contact us.

Specifications

Mechanical Design

Mounting Wall Mount

Software Support

Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit; Windows 7 Professional (FES) 32-bit

Core System

Processor Core i7-7700; Core i7-6700; Core i5-7500; Core i5-6500; Core i3-7101E; Core i3-6100; Celeron G3930E; Celeron G3900
CPU Generation (Development code) 6th Gen. (Skylake-S); 7th Gen. (Kaby Lake-U)
CPU socket LGA1151
Memory 16GB; 8GB; 4GB
RAS Hardware monitor (Fan speed / Temperature / Voltage)
GPU
AI Performance
Security TCG TPM 2.0

Interface

Video 1x DVI-I
LAN 2x 1000BASE-T
Wireless -
Audio -
I/O 1x USB3.2 Gen1 (USB3.0); 2x USB2.0
Memory card -

Expansion Slot

Expansion bus 1x PCI Express(x16); 7x PCI
Drive bay 2x 5-inch bay (SATA)

Power

Input voltage 100 to 240VAC

Environment

Operating temperature 5 to 40°C (41 to 104°F)
Storage temperature -20 to 60°C (-4 to 140°F)
Standards & Certifications CE; FCC Class A; UKCA; VCCI Class A
