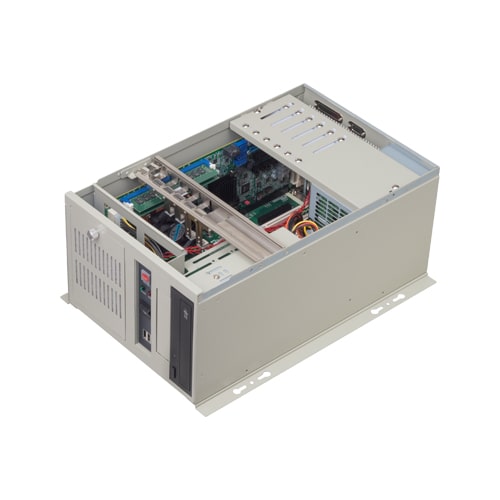

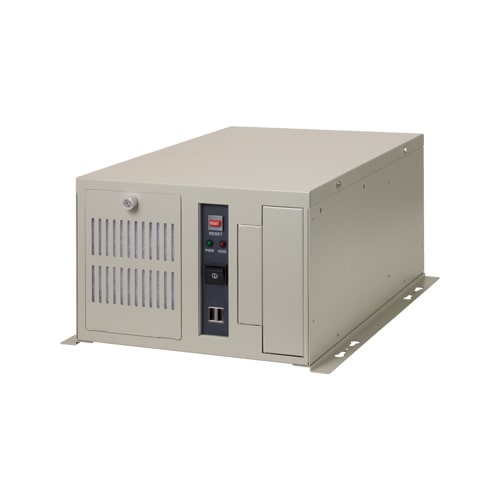

SPF6SQ1700 Industrial Computer SPF6SQ1700 - Wallmount PC / Intel 6th/7th Gen. Core (Skylake/Kaby Lake + Q170) / 1x PCIe(x8) / 4x PCI / AC Power Supply

  • Standard Warranty3 yr
  • Extended WarrantyAvailable
  • Compatible with Intel® Core™ processor series Skylake/Kaby Lake
  • Supports pre-installation of Windows 7 Pro and WES 7
  • Compact wall-mounted design
  • Expandable to up to five PCI and PCI Express slots
  • Rich variety of interfaces for freely expandable peripherals
  • Reliable, Japan-made power supply
  • *
    For details about an extended warranty, please contact us.

Ordering Information

Ordering Information

Model Description Certification
SPF6SQ1700 Industrial Computer SPF6SQ1700 - Wallmount PC / Intel 6th/7th Gen. Core (Skylake/Kaby Lake + Q170) / 1x PCIe(x8) / 4x PCI / AC Power Supply
  • CE marking
  • FCC compliant
  • VCCI

BTO Menu

This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation. *1

CPU
  • Core i7-7700
  • Core i5-7500
  • Core i3-7101E
  • Celeron G3930E
  • Core i7-6700
  • Core i5-6500
  • Core i3-6100
  • Celeron G3900
Memory
  • 16GB (2x 8GB)
  • 8GB (1x 8GB)
  • 4GB (1x 4GB)
Storage 1
  • 3.5" 2TB HDD
  • 2.5" 256GB SSD MLC
  • None
Storage 2
  • 3.5" 2TB HDD
  • 2.5" 256GB SSD MLC
  • None
Optical drive (5" bay)
  • DVD-multi drive
  • None
OS
  • Windows 10 IoT Enterprise 2019 LTSC 64-bit (English/Chinese/Japanese/Korean)
  • Windows 7 Professional FES 32-bit (English/Japanese)*2
    (Last Order: 31 May, 2024)
  • Windows 7 Embedded System 32-bit (Japanese)*2*3
    (Last Order: 28 Feb, 2025)
  • None
Additional USB ports *4
  • None
  • USB3.1 Gen1(USB3.0) port x2
  • USB3.1 Gen1(USB3.0) port x4
Additional COM ports *4*5
  • None
  • COM port x2 (COM1/COM2)
  • COM port x2 (COM3/COM4)
  • COM port x4 (COM1/COM2/COM3/COM4)
Other Options
  • 109 Japanese keyboard (USB)
  • English keyboard (USB)
  • Mouse (USB)
  • Partitioning service

*1 There are combinations that can not be configured. Please inquire in detail.
*2 It can be selected only when the 6th generation CPU (Skylake) is used.
*3 This OS can be provided by OEM basis. For more details, please contact our distributor or nearest Contec office.
*4 Occupying expansion slot (2 ports per PCI slot).
*5 COM1/COM2: RS-232C only. COM3/COM4: RS-232C, RS-422A, RS-485 can be switched.



Options

Storage

Item Item Name
HDD-2TS-3 3.5-inch 2TB SATA Hard Disk Drive
SSD-256GS-2M 2.5-inch 256GB SATA Solid State Drive
