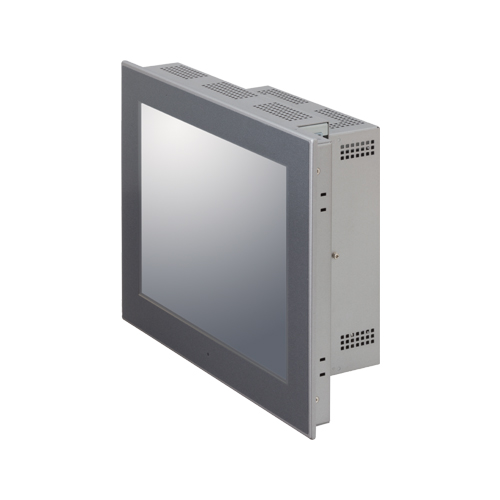

PT-956SLXP1 Series PT-956S - Touch Screen PC / Panel Mountable / 12.1-inch LCD / Atom E3845 (BayTrail SoC) / 1x PCI / DC Power Supply

  • Standard Warranty3 yr
  • Extended WarrantyAvailable
  • Fanless design that reduces maintenance work
  • Remote power management function to reduce operation tasks
  • Expansion slots to hold PCI bus boards
  • High definition supported DVI external display output
  • CFast retention fitting and cable tie provided to avoid trouble caused by disconnected cable
  • Safety design required for embedded applications
  • *
    For details about an extended warranty, please contact us.

Similar Models

Ordering Information

Ordering Information

Model Description Certification
PT-956SLXP1-DC700000 12.1 inch touch-panel, LCD(XGA), 4GB Memory (w/o OS, w/o CFast card, 1 x PCI slot x 1)
  • CE marking
  • FCC compliant
  • VCCI
PT-956SLXP1-DC731314 [Limited Stock] [End of Repair Service : February 27, 2031] 12.1 inch touch-panel PC LCD (XGA), 4GB Memory , Windows Embedded Standard 7 RUNTIME P 32bit (English, Chinese, Japanese, Korean), CFast card (SLC) 16GB, PCI slot x 1)
  • CE marking
  • FCC compliant
  • VCCI
PT-956SLXP1-DC781724 12.1 inch touch-panel PC LCD (XGA), 4GB Memory, Windows 10 IoT Enterprise LTSB 2016 64bit (English, Chinese, Japanese, Korean), CFast card (Q-MLC) 32GB, PCI slot x 1)
  • CE marking
  • FCC compliant
  • VCCI
PT-956SLXP1-DC7C1724 12.1 inch / 4GB ECC RAM / CFast 40GB iSLC(Support Power Failure Protection) / Win10 IoT LTSB 2016
  • CE marking
  • FCC compliant
  • VCCI
PT-956SLXP1-DC7D1724 12.1 inch / 4GB ECC RAM / CFast 128GB TLC(Support Power Failure Protection) / Win10 IoT LTSB 2016
  • CE marking
  • FCC compliant
  • VCCI

Options

Power Supply / AC Adapter

Item Item Name
ACAP19-01 Switching AC Adapter (19VDC 3.42A)

Storage

Item Item Name
CFS-128GBTP-A 1.0-inch 128GB SATA CFast Card (TLC)
CFS-16GB-A 1.0-inch SATA CFast Card (SLC)
CFS-16GBQ-A 1.0-inch 16GB SATA CFast Card (Q-MLC)
CFS-32GBQ-B 1.0-inch 32GB SATA CFast Card (Q-MLC) (Wide temperature range spec)
CFS-40GBIP-A 1.0-inch 40GB SATA CFast Card (iSLC)
CFS-A 1.0-inch SATA CFast Card (SLC)

Other Accessories

Item Item Name
IPC-CV12 Protection Cover for 12.1-inch PANEL-PC (10Sheet/Set)
