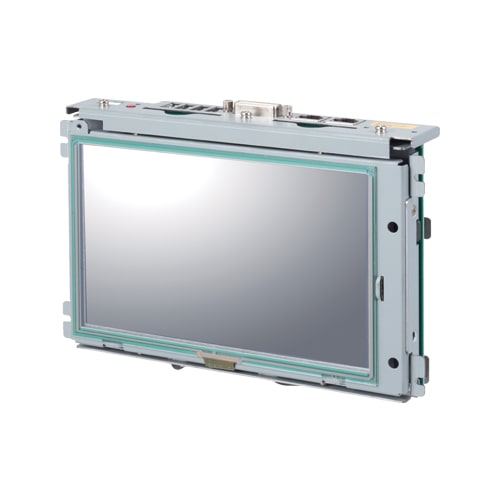

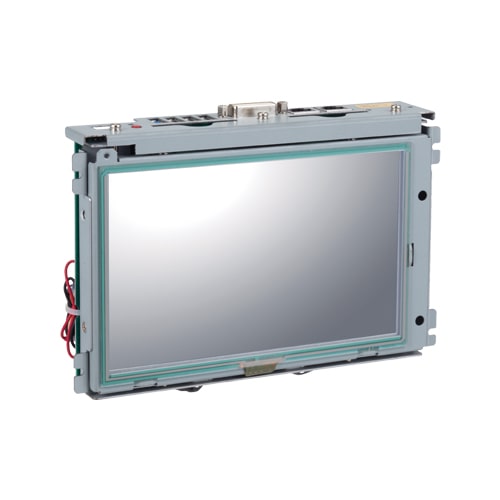

PT-F07WA-100 Panel PC PT-F07WA-100 Touch Screen PC / Open Frame / 7-inch LCD with resistive touch panel / Atom E3845 (BayTrail SoC) / DC Power Supply

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

This product is a fanless Panel computer that is equipped with an Intel® Atom TM processor　E3845 1.91GHz. With a 7-inch LCD touch-screen, the product allows to be integrated into various devices. Extendable interfaces such as DVI-I, LAN, USB3.2 Gen1 (USB3.0), USB2.0, and Serial are provided. It employs a CFast card for storage and is fanless to ensure a totally spindleless design that simplifies maintenance. Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, CONTEC-customized BIOS allows support to be provided at the BIOS level.

• Contributing to running cost reduction and energy efficiency

  • Adopting the low-power platform of Intel® Atom TM Processor E3845 achieves lower power consumption while still ensuring sufficient performance.

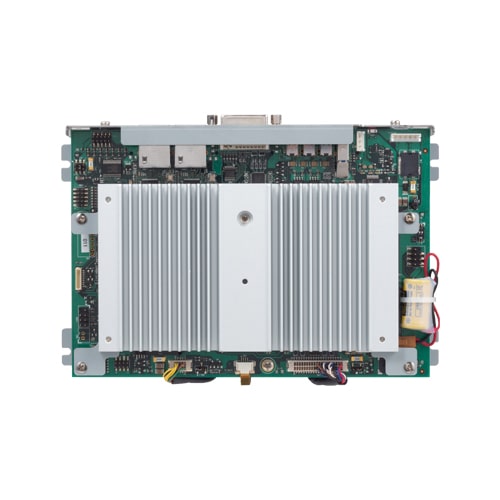

• Fanless design that reduces maintenance and inspection work

  • This product employs a CFast card for storage and the spindle-less design eliminates CPU fan. It relieves the concern about dust or foreign matter to get into the product. Furthermore, using the parts that degrade over time is minimized to reduce maintenance load.
• Remote power management function to reduce operation tasks

  • It supports system start-up externally via network (Wake On LAN) and modem (Power On by Ring). It encourages significant labor saving in operation.
• High definition supported DVI external display output

  • This product has the up to 1920 x 1080 pixels DVI external display output as standard feature. A standalone two-display application which, for example, displays the screen on a big LCD TV separately from the main LCD, can be built.
• A wide range of power supplies (10.8 to 31.2VDC) supported

  • As the product supports a wide range of power (10.8 to 31.2VDC), it can be used in a variety of power environments.
• Major types of peripherals are supported with rich interfaces

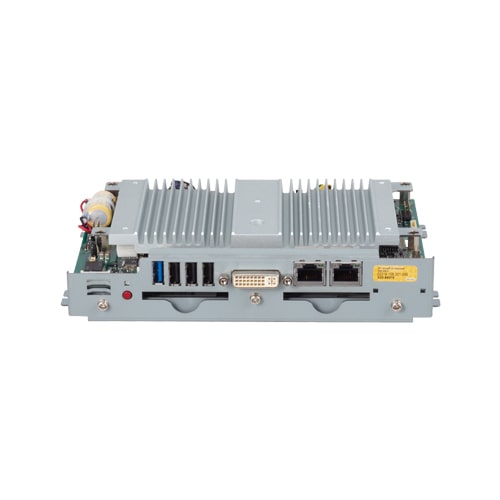

  • It has a variety of extended interface such as DVI-D x 1, LAN x 2, USB3.2 Gen1 (USB3.0) x 1, USB2.0 x 3, serial (pin header) x 2. It has two slot-in type of CFast card slots, providing the ability to separate data from the operating system, as well as the convenience of being able to use one slot for system startup and the other for maintenance or for taking home system logs or collected data.
