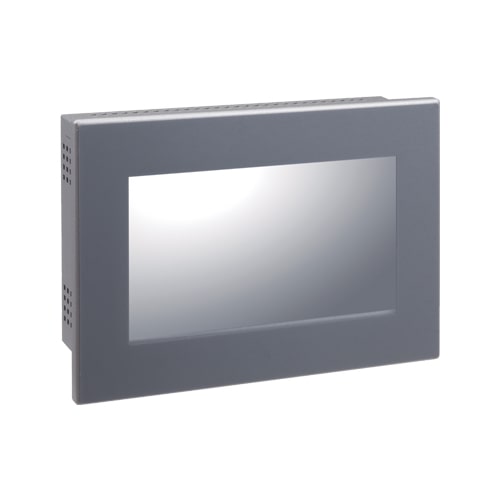

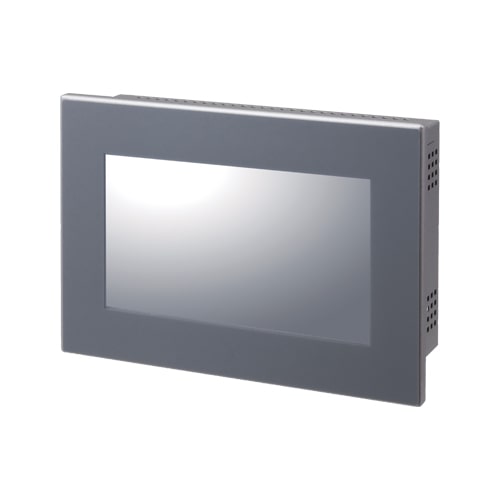

PT-M07WA-310 Panel PC PT-M07WA Touch Screen PC / Panel Mountable / 7-inch LCD resistive touch panel / Atom x6425E (Elkhart Lake) / DC Power Supply

Standard Warranty3 yr
Extendy WarrantyAvailable

Contributing to running cost reduction and energy efficiency
Fanless design that reduces maintenance and inspection work
Remote power management function to reduce operation tasks
Major types of peripherals are supported with rich interfaces
"Power failure protection system" features power-off without OS shutdown
CONTEC-customized BIOS provides useful utility

*
For details about an extended warranty, please contact us.

Technical Column：Industrial Touch Panel Technology

Specifications

Mechanical Design

Mounting	Panel Mount

Software Support

Supported OS	Windows 10 IoT Enterprise 2021 LTSC 64-bit

Core System

Processor	Atom x6425E
CPU Generation (Development code)	Elkhart Lake
CPU socket	-
Memory	8GB
RAS	Hardware monitor (Temperature / Voltage); Watchdog timer
GPU	-
AI Performance	-
Security	TCG TPM 2.0; NIST SP800-147 (BIOS Write Protect); Secure Boot USB Key

Touch Screen

LCD size	7-inch
LCD resolution	800 x 480 (WVGA)
Touch panel resolution	4096 x 4096
Detection method	Analog resistive touch

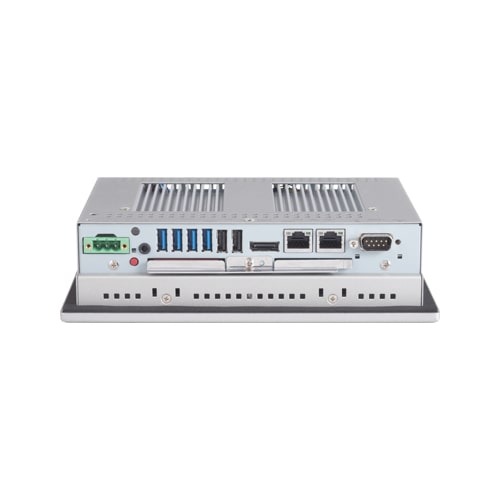

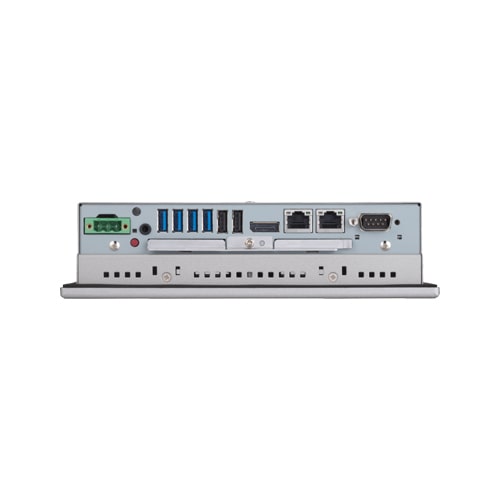

Interface

Video	1x DisplayPort (v1.4)
LAN	2x 1000BASE-T
Wireless	-
Audio	1x Line out
I/O	4x USB3.2 Gen1 (USB3.0); 2x USB2.0; 1x RS-232C
Memory card	2x CFast slots

Expansion Slot

Expansion bus	-
Drive bay	-

Power

Input voltage	12 to 24VDC

Environment

Operating temperature	0 to 55°C (32 to 131°F)
Storage temperature	-10 to 60°C (14 to 140°F)
Standards & Certifications	CE; FCC Class A; UKCA; UL; VCCI Class A
