XPT-T1010LXC Panel PC XPT-T1000 - Touch Screen PC / Panel Mountable / 12.1-inch LCD / Core i5-7300U (Kaby Lake U) / DC Power Supply

• Overview / Features
• Specifications
• Ordering Information
• Support / Downloads

Overview / Features

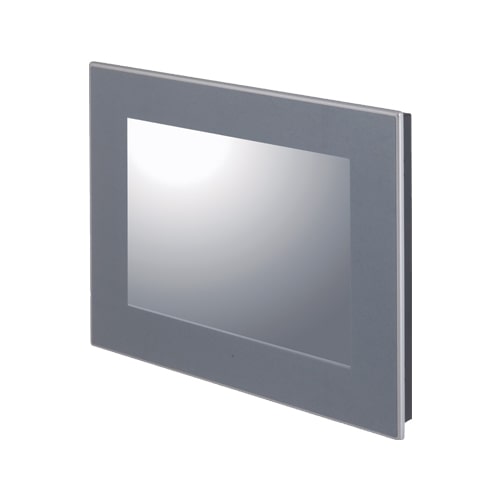

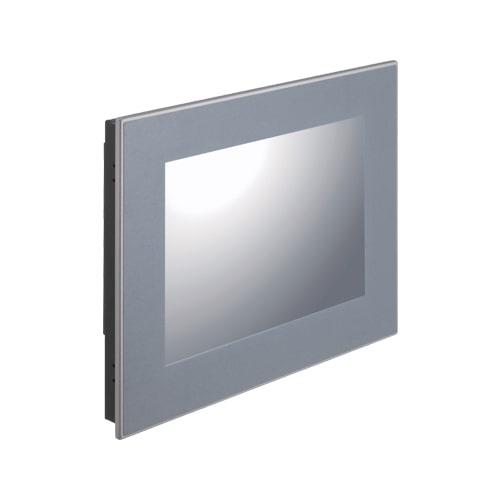

This product is a fan-less, high-performance, industrial-use PANEL computer that is equipped with the 7th-generation Intel® Core™ i5-7300U CPU processor and 12.1-inch touch panel LCD. Along with its power-saving and high-performance features, this product has a rich variety of interfaces and achieves fan-less operation by way of natural air-cooling. Various interfaces such as dual LAN / USB3.0 / DisplayPort / DVI-D / RS-232C, and the slot-in 2.5 inches SATA disk bay unit being installed. Additionally, the product employs 5-wire resistive touch to maintain the durability. Embedded-type CPU has been adopted. The use of readily available parts ensures the product to be applied easily. In addition, the use of CONTEC-customized BIOS allows support to be provided at the BIOS level.
Replaceable with our earlier products of the PT-955LXC series, this PANEL computer can be easily replaced into the existing system.

• 7th generation Core i5 processor adopted

  • This product adopts the Core i5-7300U CPU that saves power consumption and also provides high computing and graphic performances. Embedded-type CPU makes the stable supply possible.
• Fan-less design reduces maintenance work

  • The product is fan-less to ensure a totally spindle-less design that simplifies maintenance, relieving the concern about dust or foreign matter to get into the product. Moreover, along with minimized use of degrading parts greatly reduce maintenance work.
• "Power failure protection system" features power-off without OS shutdown

  • Equipped with the "Power failure protection system" function that protects data and prohibits writing to storage in the event of power failure *1. Along with the lockdown (disk writing suppression) function of Windows IoT Enterprise, power can be safely turned off without a shutdown process. Moreover, file system damage or data damage caused by sudden power failure can be avoided.

    • *1
      Only the SSD 256GB (TLC) model are compatible with the "Power failure protection system" .
• A wide range of power supplies (10.8 to 31.2VDC) supported

  • As the product supports a wide range of power (10.8 to 31.2VDC), it can be used in a variety of power environments. The separately available AC adapter adds support for 100- 240VAC power.
• Major types of peripherals are supported with rich interfaces

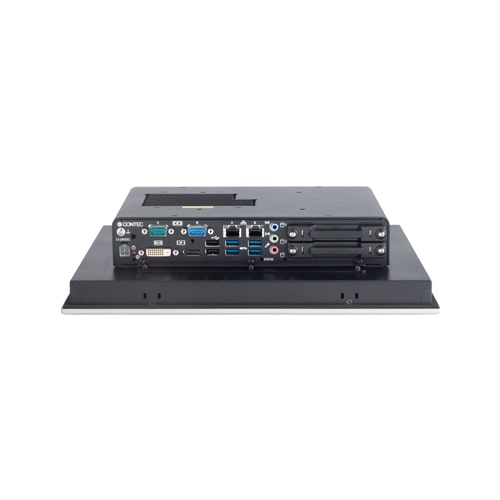

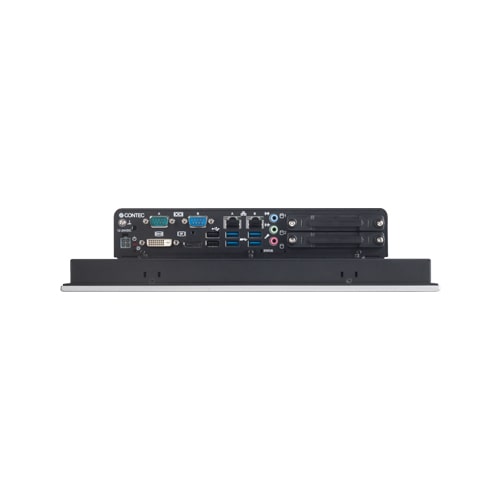

  • It has a variety of extended interface such as DVI-D x 1, DisplayPort×1, 1000BASE-T x 2, USB3.0 x 4, USB2.0 x 2, serial (RS-232C) x 2. It has two slot-in type of 2.5-inch SATA disk slots, providing the ability to separate data from the operating system, as well as the convenience of being able to use one slot for system startup and the other for maintenance or for taking home system logs or collected data.
• Adopting a 5-wire resistive film touch-screen holds high durability

  • It has a 5-wire resistive film touch-screen that maintains high durability. The operating life is long-lasting of 36 million times. *2
    • *2
      with Load 300g, Speed twice/second, by machine keying.
