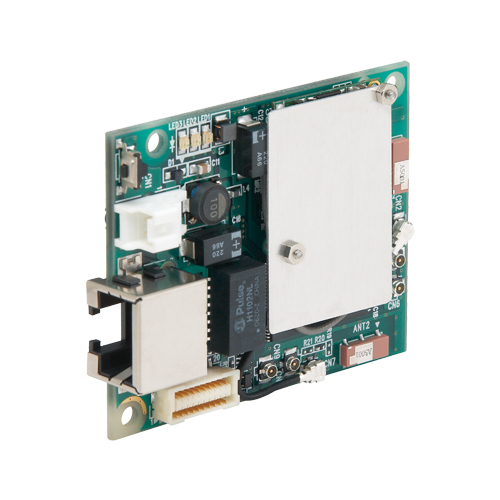

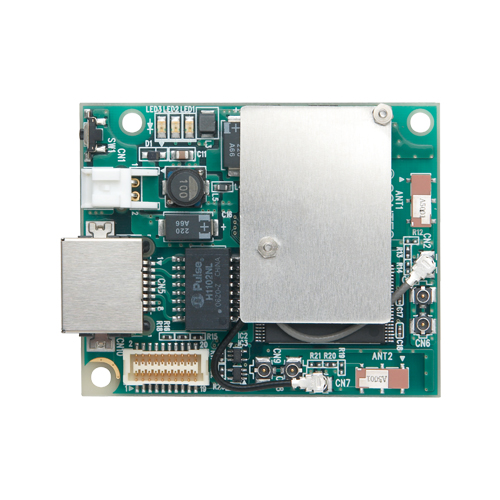

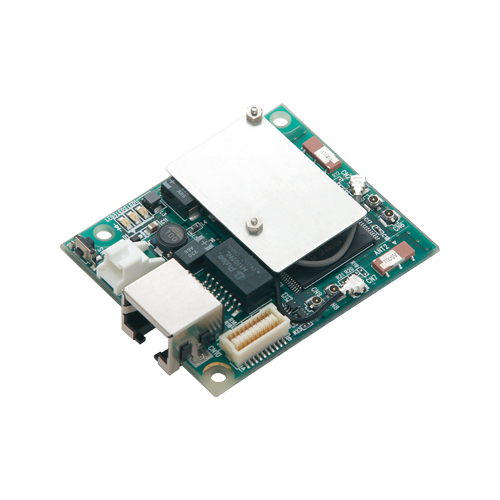

This product is based on IEEE802.11b/IEEE802.11g; support a wide input power supply (5 - 24VDC). It is a station for machinery embedded which is the low cost and only has half size of the business cards. Regardless of the OS and CPU, It can make machinery having Ethernet port into a wireless LAN easily. Also it supports high security capability for WPA2/WPA, IP tunnel, and a multi-client function. In addition, It also prepares supplicant function of IEEE802.1X with an option and can use it by purchasing an extra license.
-
- It is a station for machinery embedded which is low cost and has only half size of the business cards(45mm *55mm), and based on the wireless LAN standard IEEE802.11b standard(1 - 14ch)/IEEE802.11g(1 - 13ch). It can detect a 11b/g standard of access point automatically, and a transmission rate automatic change(fix it) is possible.
-
- It supports latest security standard WPA2/WPA. It support IEEE802.1X supplicant function (an option) *1 as well as coding of WEP(64/128bit). In addition, it is equipped with original coding functions such as original cryptographic technology WSL which It can use together with WPA2/WPA and WEP. *1 The purchase of an extra license is necessary to use supplicant function of IEEE802.1X.
-
- It supports a wide input power supply of 5 - 24VDC and can use it in various power supply environment.
-
- By combination of switching HUB, It is equipped with a multi-client function which can gather up plural LAN machinery (greatest 256) to wireless LAN.
-
- As well as a normal infrastructure mode, it is equipped with the ad hoc mode which can perform communication between stations (the baby station) without an access point.
-
- It is equipped with a tip type x 2 diversity antenna (on board). Optionally, Also it prepares the high-gain antenna which can support various uses and environment.
