概要・特点

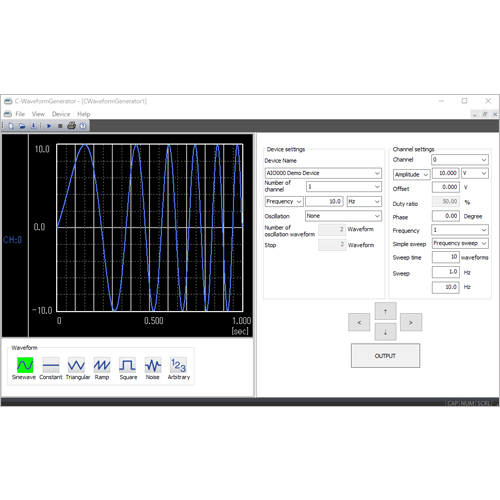

MCI-GEN-WIN is a Software that easily outputs basic waveforms using Contec’s analog output device on Windows 11/10. Compatible with a wide variety of measurement control devices PC-HELPER series (PCIe/PCI, USB). With a GUI that resembles a benchtop signal generator, you can output voltages up to ±10V or current outputs from 0 to 20mA with just one click.

• *
  The output range depends on the specifications of the analog output device.

• No programming required. Contains 6 basic waveforms (DC, sine wave, triangular wave, square wave, ramp wave, and noise) that can be used immediately

  • Simply select the basic waveform and single “output” to generate export immediately. (The upper limit varies depending on the device used), Auto burst and trigger burst are also supported.
• Sweep output is possible

  • Basic waveforms can be sweep-calculated and output offline. Compatible with frequency sweep, amplitude sweep, DC offset sweep, square wave duty sweep.
• Cooperation with other software

  • Waveform data (CSV format) generated by Microsoft Excel can also be used with C-WaveformGenerator. Can be linked Contec’s data logger software “C-LOGGER™”.
• SDK (Software Development Kit) that enables control from external applications are supported

  • It is possible to control C-WaveformGenerator with Visual C# etc. And it allows to incorporate waveform output functionality into your inspection/measurement control applications easily.
