SH-8008AT-POE 工业级 8 端口非网管型 100M PoE 交换机

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

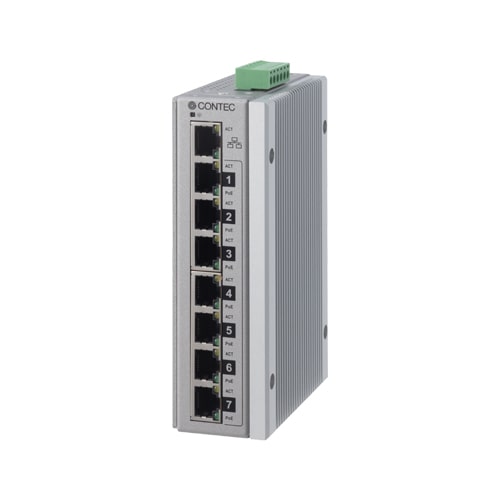

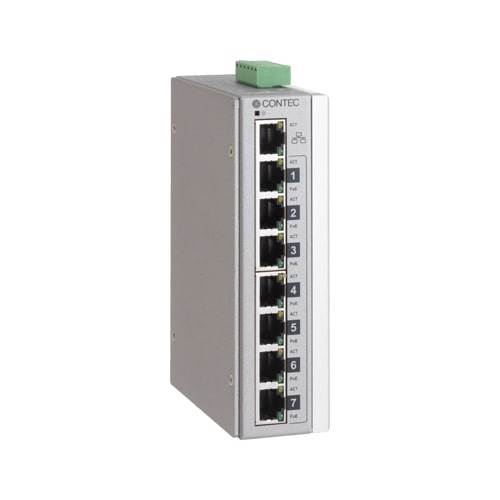

This product is an eight-port, industrial 100M switching hub that conforms to IEEE 802.3af/at and is capable of PoE power supply. You can use Category 5 or higher LAN cables to supply power from up to seven ports to devices that conform to IEEE 802.3af/at.
The SH-8008AT-PoE can supply up to 30 W per port and up to 105 W* over all ports. Various fixing brackets are available for installations on walls and 35 mm DIN rails.
The dedicated cascade connection port allows the hub to be expanded through these connections when the number of ports on a single hub is insufficient. Due to the fanless design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired. Carefully read this Reference Manual to connect the product with devices and establish the system.
* The supplied power will be limited by the power supply input voltage.

• PoE power supply function based on IEEE802.3af, IEEE802.3at

  • Power can be supplied to PoE devices that conform to IEEE802.3af, IEEE802.3at of maximum 7ports. Up to 30W per port and up to 105W * for all ports can be powered.

    • *
      There is a limit to supply the power depending on the power input voltages.
• Eight of 100BASE-T ports are equipped

  • The product has eight ports * which conform to IEEE802.3u(100BASETX)/ IEEE802.3(10BASE-T). Due to the fan-less design, this hub can be used in the places where the quietness or a longer lifetime of the product is desired.

    • *
      Including the dedicated cascade connection port on the product.

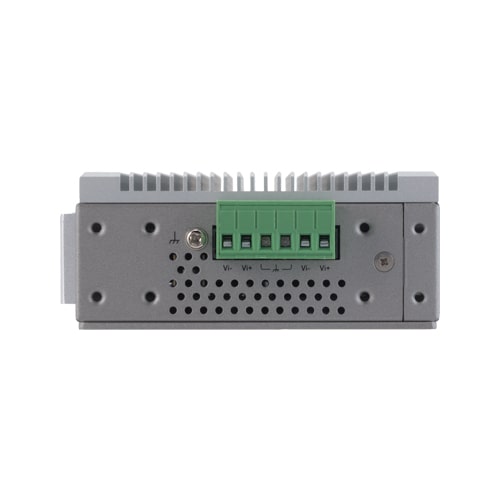

• Capable of operating in a wide-ranged power inputs, and features dual power support

  • The product is capable of operating in a wide range of DC power between 12 and 54VDC. Moreover, dual power supports the product to continue to work even if one of the power supplies fails.

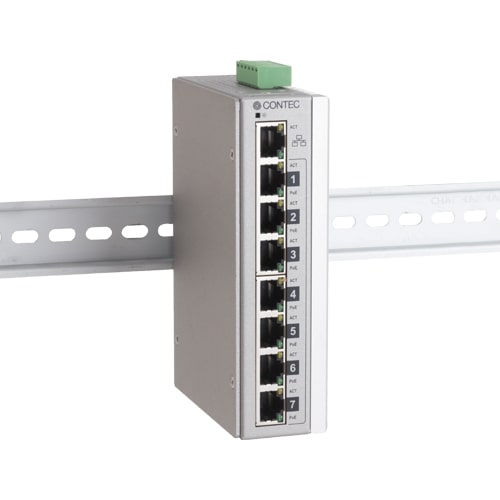

• DIN rail mounting or Wall installation

  • With the supplied brackets, the product can be set on a 35mm-DIN rail or on the wall.
• Cascade port

  • One of the eight Ethernet ports supports cascade connections, ensuring safe operation even when using cascade connections to link multiple instances of this product.
