概要・特点

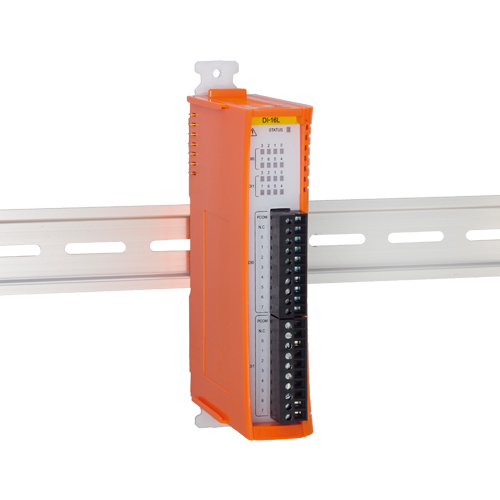

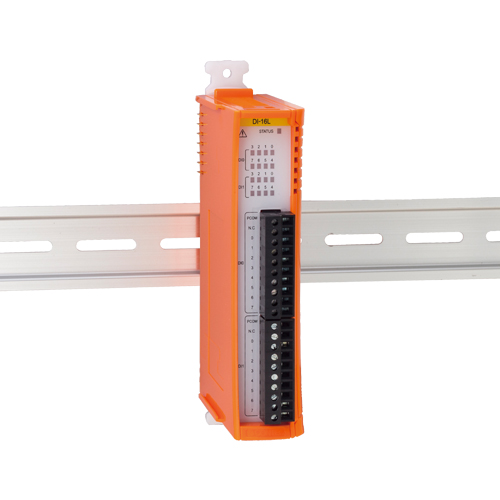

This product is an extension module with isolated digital input interface and operates along with the stack type controller of our CONPROSYS series. CPS-DI-16L have the optocoupler isolated input 16 channels (supporting current sink output) whose response speed is 200μsec or less. All of the input signals are usable as interrupt events.
-
Optocouplerisolated input (supporting current sink output)
- CPS-DI-16L have the optocoupler isolated input 16 channels (supporting current sink output) whose response speed is 200μsec or less.
-
All of the input signals are usable as interrupt events
- You can use all of the input signals as interrupt events and also disable or enable the interrupt in bit units and select the interrupt edge.
-
Digital filter to prevent input signals from carrying noise or a chattering
- This product has a digital filter to prevent input signals from carrying noise or a chattering. All input terminals can be added a digital filter, and the setting can be performed by software.
-
Output circuits include zener diodes for surge voltage protection
- Zener diodes are connected to the output circuits to protect against surge voltages. The rated output is 35VDC, 100mA to the maximum per channel.
-
Adaptable to a wide range of temperature between -20 and +60°C
- The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
-
Equipped with the LED for an operation check
- The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
