概要・特点

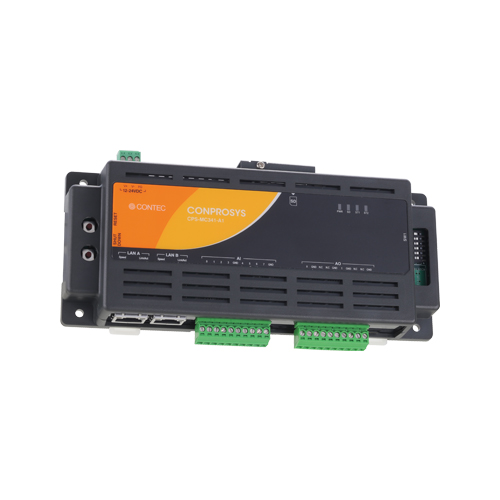

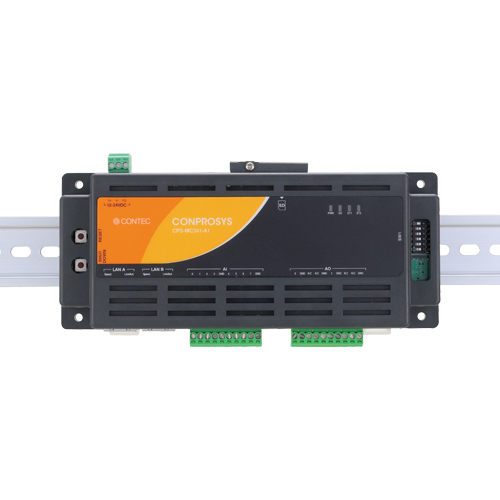

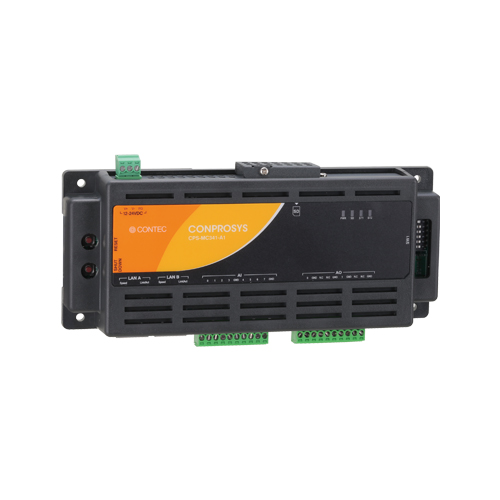

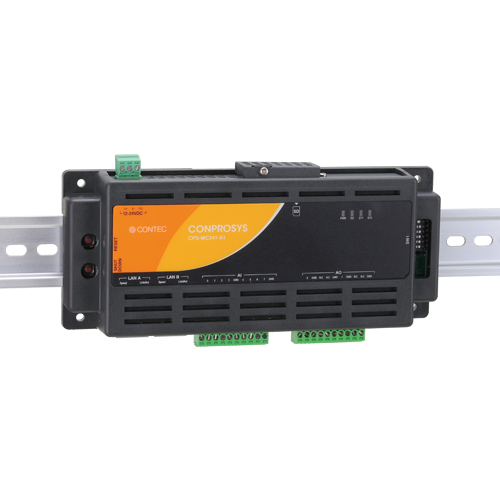

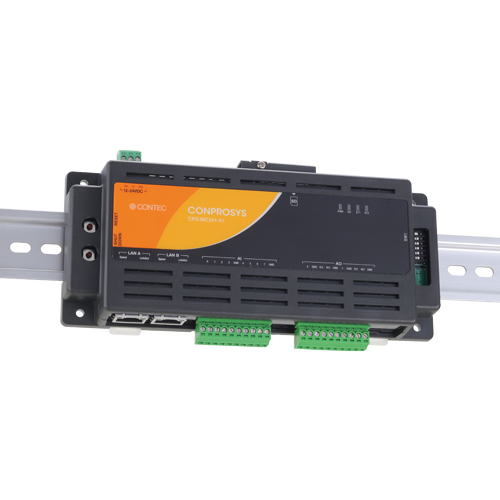

This product is a M2M controller with analog input and output. It contains high precision 8 channels of analog input and 2 channels of output with 16-bit solution each. It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device. You can perform all processes on a web browser from the development to the operation. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.
This product is in compliant with the following standards: CE, FCC, UL and VCCI.
-
Bus isolated high precision 8 channels of analog input and 2 channels of output within
- Supplied with analog input (16-bit, 8 channels), and analog output (16-bit, 2 channels).
-
Measurement and Upload
- The product measures data with an external sensor and uploads them to the Cloud server.
-
Web Monitoring and Web Task Script
- The product contains a Web server. Even with the PC located remotely, I/O information can be monitored and updated through a Web browser.
On the monitoring screen, the standard GUI parts (graphic, slider, button, etc.) can be freely arranged.
All operations including monitoring layout, making relations with I/O information, can be achieved through a Web browser.
-
Simple Router Function
- Equipped with a simple routing function. It is possible to use a DHCP server, static routing, port routing and IP routing.
-
Message Communication Function
- With the Ethernet device (TCP/UDP), up to 10 links can be set to send or receive messages. Message communication can be accomplished from Web task script.
-
Compact Design
- Compact design, 188.0(W) × 78.0(D) × 30.5(H), features flexibility in installation.
See more details of M2M/IoT Solution CONPROSYS Series
