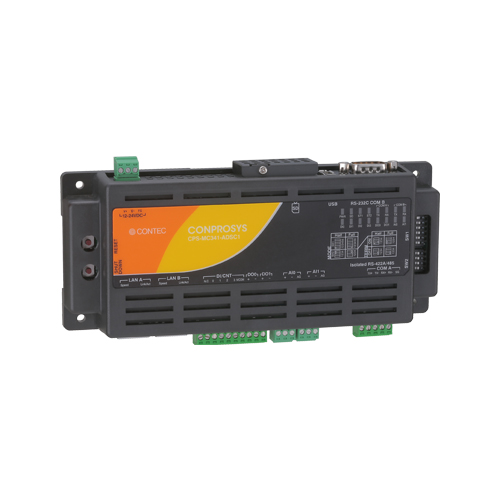

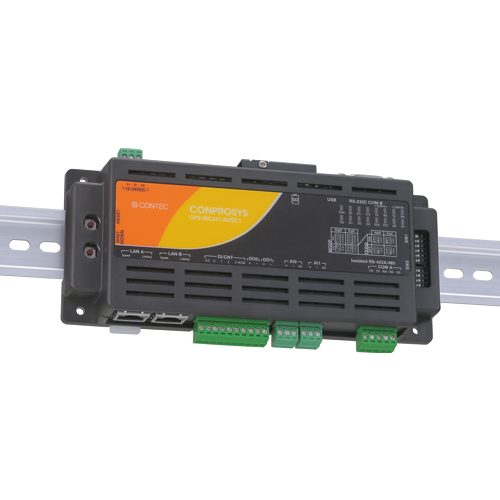

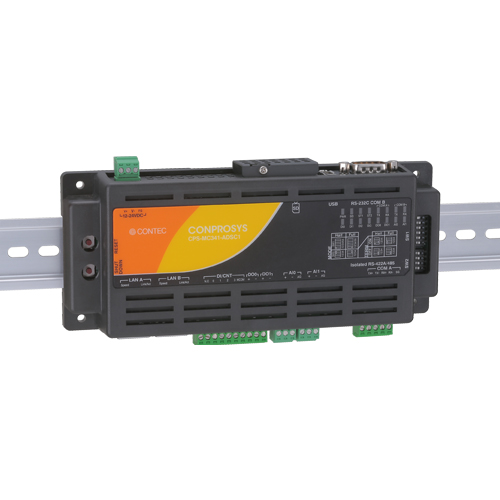

CPS-MC341-ADSC1-111 CONPROSYS M2M控制器 - 精巧一体型 / 1x LAN + HUB / 4x DI / 2x DO / 2x AI / 2x CNT / 1x RS-232C / 1x RS-485

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Measurement and Upload
  • Simple Router Function
  • Web Monitoring and Web Task Script
  • Message Communication Function
  • Compact Design
  • Adaptable to a temperature range between -20 and 60°C
  • *
    有关延长保修的详细信息,请与我们联系。

概要・特点

This product is a M2M controller with isolated RS-422A/485, isolated digital input/output, isolated counter input, inter-channel isolated analog input, RS-232C, and LAN interface. It is equipped with the ARM®Cortex®-A8 processor (600MHz) and the 512MB DDR3-SDRAM system memory. On-board NOR-FLASH is utilized for a booting device. With the CONPROSYS series, data can be collected from various types of facilities and managed them all centrally. All the processes from development to operation can be performed on a web browser. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.

  • Measurement and Upload
    • The product measures data with an external sensor and uploads them to the Cloud server.
  • Simple Router Function
    • Equipped with a simple routing function. It is possible to use a DHCP server, static routing, port routing and IP routing.
  • Web Monitoring and Web Task Script
    • The product contains a Web server (Java applet). Even with your PC located remotely, you can monitor and update I/O information through a Web browser. On the monitoring screen, you can freely lay out the standard GUI parts (graphic, slider, button, etc.). All operations including monitoring layout, making relations with I/O information, can be achieved via the Web browser. By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operation can be completed on the Web browser.
  • Message Communication Function
    • With the RS-232C, the RS-422A/RS-485 or the Ethernet device (TCP/UDP), up to 10 links can be set to send or receive messages. Message communication can be accomplished from Web task script.
  • Compact Design
    • Compact design of 188.0(W), 78.0(D), 30.5(H) does not require special installation location.
  • Adaptable to a temperature range between -20 and 60°C
    • Because the product supports -20 to 60°C operating temperature environment, it can be used in a variety of environments.
