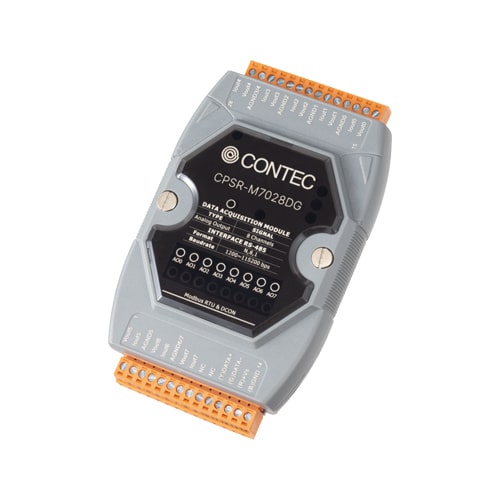

CPSR-M7028DG Modbus-RTU RS-485 Remote I/O Analog Output 12bit 8ch - CONPROSYS Robust I/O series

• 概要・特点
• 机能・规格
• 订购信息・选件
• 技术支持・下载

概要・特点

The CONPROSYS Robust I/O series is a standalone remote I/O module that supports the Modbus communication protocol. It is designed to be environmentally resistant, with excellent noise resistance and overvoltage and overcurrent protection circuits, and can be used in industrial applications such as monitoring factory equipment and production lines and process control.

• RS-485 based Robust remote I/O module for Modbus-RTU protocol : 8ch 12bit Analog Output

  • RS-485 (Modbus-RTU) based remote I/O with 8ch 12bit Analog Output. Communication control system of up to 1.2 km can be constructed using low-cost twist-pair cable.
• Designed for a wide operating temperature range of -25 to 75°C

  • Designed to withstand a wide operating temperature range of -25 to 75°C (during operation). Robust design that can be used in outdoor environments with large temperature changes.
• Dual watchdog function monitors module and communication failures

  • Dual watchdog function monitors module and communication failures. If an operational failure of the module is detected, it will automatically reset and return the signal output to the set value. If the communication command from the host is interrupted, the signal output will also return to the set value. This prevents damage and abnormal operation of the sensors/actuators connected to the module.
• Robust ESD/EFT resistance

  • Passes IEC 61000-4-2 ESD and IEC 61000-4-4 EFT tests. Robust design that is resistant to noise, spikes and high-voltage electrostatic discharges.
