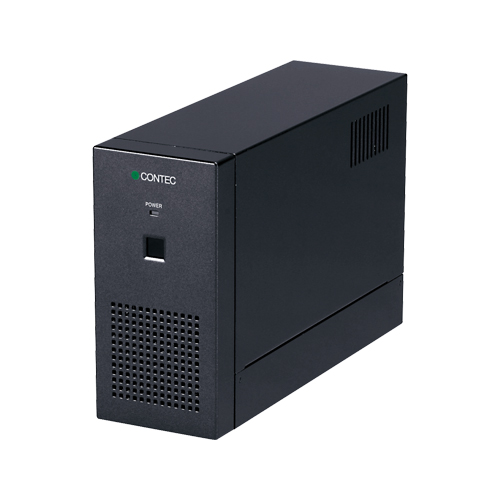

ECH(PCI)SF-H2B StarFabric conformity PCI Bus Expansion Chassis Short x 2Slots with AC adaptor

停产商品

标准保修1年
延长保修可能

修理承接期限 : 2023/01/31

览推荐替代产品

※即使在期间内，也会有不能接受修复．

Capable of adding PCI bus (5V/32-bit, 33MHz) slots. ECH(PCI)SF-H2B can add 2 slots.

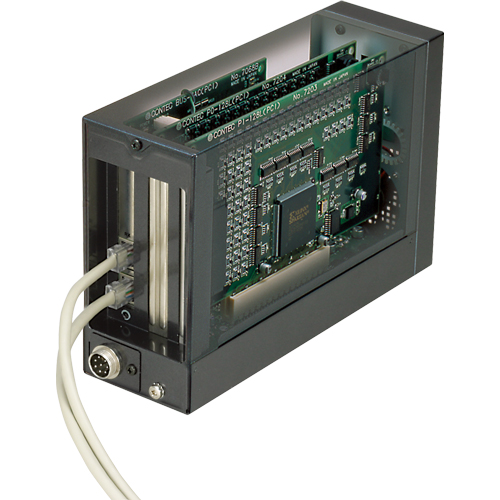

Accepting short-size PCI bus boards.
Power supply controllable in response to the turning on/off of the PC's power supply.
Built-in cooling fan.
Compact housing that enables a space-saving system to be constructed.
AC adapter is bandled.

*
有关延长保修的详细信息，请与我们联系。

订购信息・选件

替代推荐产品

产品名称	说明
StarFabric conformity PCI Bus Expansion Chassis Long x 2Slots with AC adaptor ECH(PCI)SF-F2B	The dimensions are different. The usage is compatible. ECH(PCI)SF-F2B supports long size PCI boards.

产品模式与订货型号

型号	产品型号	适应规格
ECH(PCI)SF-H2B	StarFabric conformity PCI Bus Expansion Chassis Short x 2Slots with AC adaptor

可选件

Bus adapter

項目	項目名
EAD(CB)SF	StarFabric conformity PCI Bus Expansion Adapter for CardBus PC-Slot
EAD(LPCI)SF	StarFabric conformity PCI Bus Expansion Adapter for Low Profile PCI PC-Slot
EAD-SF-LPE	StarFabric conformity PCI Bus Expansion Adapter for Low Profile PCI Express PC-Slot

Extended Warranty Service

項目	項目名
ESP-F5	Extended warranty service package (5 years service course) (Japan only)
ESP-S1	Extended warranty service package (Extension one year) (Japan only)
