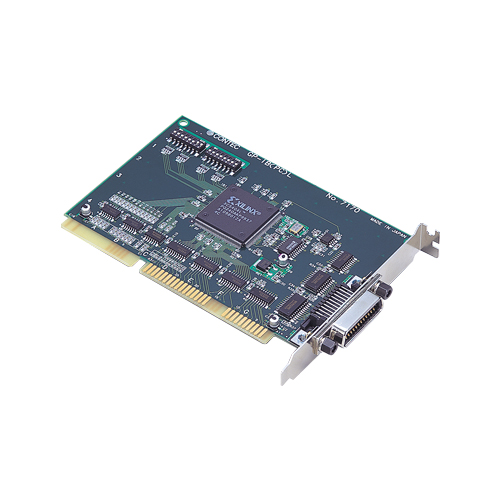

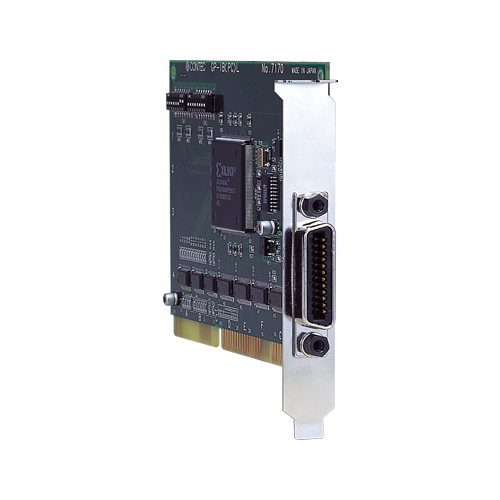

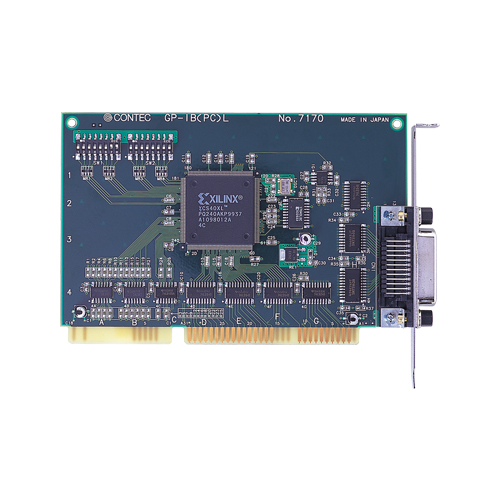

GP-IB(PC)L Low Price IEEE-488.2 GPIB Interface Board for ISA

  • 停产商品
  • 标准保修3年
  • 修理承接期限 : 2017/11/30



  • FPGA of CONTEC (compatibility with mPD7210C) is used as a GPIB controller, and stable supply is possible over a long period of time.
  • It can use interrupt (IRQ9 - 15) of the slave side. A setting of hardware is unnecessary in order to perform an interruption setting by software.
  • The timer ability which can be used with application is carried, and correct time monitor can be performed also in use in the Windows environment.
  • By a GPIB bus line reading function, It can perform each processing by the line change from an application(With a latch function).
  • It doesn't correspond to 64bit version Windows.
  • *



产品名称 说明
Low-price high-speed GPIB communication board for Low Profile PCI
It is not a PC Card type device. It is a low profile size PCI bus device for a desktop computer. Please refer the manual for details.


型号 产品型号 适应规格
GP-IB(PC)L Low Price IEEE-488.2 GPIB Interface Board for ISA
  • CE 欧洲合格认证


Device Drivers

項目 項目名
API-GPIB(98/PC) Windows version GPIB Communication Driver
API-GPIB(LNX) Linux Driver for GPIB
API-TIMER(W32) Timer Driver

Development Support Tools

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development


項目 項目名
PCN-T02 GPIB Cable (2m)
PCN-T04 GPIB Cable (4m)


項目 項目名
CN-GP/C GPIB Counter Adapter
