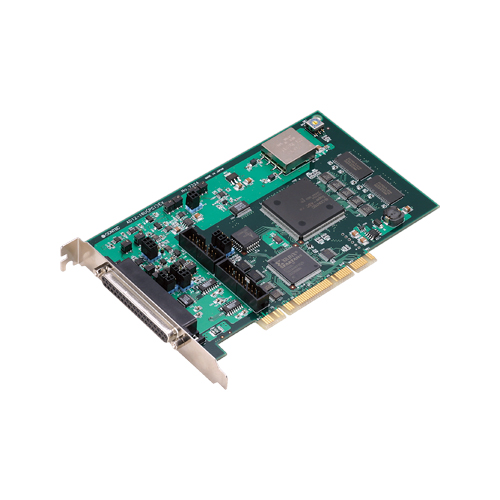

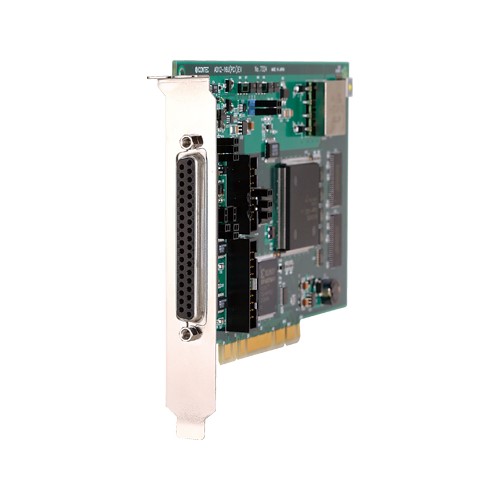

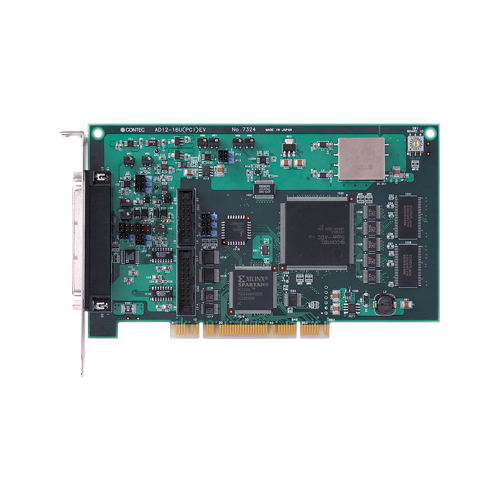

AD12-16U(PCI)EV 模拟量输入输出 PCI 总线板卡 / 16ch 模拟量输入(12bit 1Ms/s) / 1ch 模拟量输出 / 3ch 计数器 - 多功能DAQ E系列

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Resolution : 12-bit, combination speed : 1µsec/ch
  • Equipped with high-capacity buffer memory for 16M data and a variety of sampling control functions
  • Sixteen single-ended channels or eight differential channels (Analog input function)
  • Mixed on-board channels for analog output and digital I/O
  • Compact PCI short-size board with a wealth of advanced functions Abundant optional units
  • Windows/Linux compatible driver libraries are supported.
  • *



型号 产品型号 适应规格
AD12-16U(PCI)EV 模拟量输入输出 PCI 总线板卡 / 16ch 模拟量输入(12bit 1Ms/s) / 1ch 模拟量输出 / 3ch 计数器 - 多功能DAQ E系列
  • CE 欧洲合格认证
  • VCCI


Device Drivers

項目 項目名
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Development Support Tools

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
ML-DAQ MATLAB compliant Data Acquisition Library


項目 項目名
C-LOGGER Data Logger Software for Windows

Expansion Accessory Module

項目 項目名
ATBA-16E Buffer Amplifier Function Extension Box for analog input card
ATII-8C isolation function extension accessories
ATLF-8A Gain amplifier function extension accessories
ATSS-16A Simultaneous sampling function extension accessories
ATUH-16A(PCI) 16CH Extension Sub-card


項目 項目名
DT/E1 16pin Header to Open-Ended for Analog E series Boards-1.5m
DT-E3 16pin post header -> D-SUB 15pin Bracket with Cable(150mm)
PCA15P 15pin D-type(M) to Open-Ended, Flat Cable
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB15P 15pin D-type(M) at Each-End, Flat Cable
PCB15PS-P 15pin D-type(M) at Each-End, Shield Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
PCC16PS-1.5 Single End Coaxial Cable for 16ch Input(1.5m)
PCC16PS-3 Single End Coaxial Cable for 16ch Input(3m)
PCD8PS-1.5 2 wire Shield Cable for 8ch Differential Input (1.5m)


項目 項目名
ATP-16E BNC Connectors terminal box for Analog I/O Card
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
FTP-15 Screw Terminal (M3 x 15)

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
