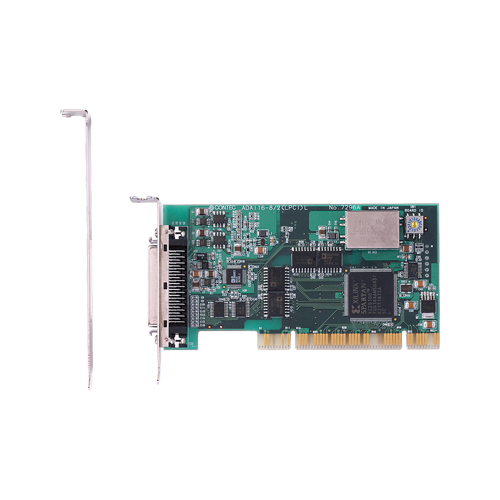

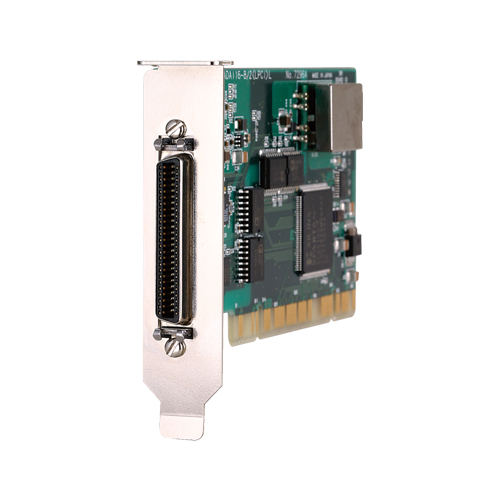

ADAI16-8/2(LPCI)L 模拟量输入输出 Low Profile PCI 总线板卡 / 8ch 模拟量输入(16bit 100ks/s) / 1ch 计数器 / 总线隔离 - 多功能DAQ L系列

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Substantiality of a basic function
  • The isolation with outside machinery
  • Substantiality of a control function
  • The filter function deployment to do connection of an outside signal easily
  • With a buffer memory
  • Adjustment is possible by software
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
ADAI16-8/2(LPCI)L 模拟量输入输出 Low Profile PCI 总线板卡 / 8ch 模拟量输入(16bit 100ks/s) / 1ch 计数器 / 总线隔离 - 多功能DAQ L系列
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
PCA50PS-P 50pin miniature ribbon connector to Open-Ended, Shield Cable (Mold type)
PCB50PS-P Both sides with connector shield cable for 50pin miniature ribbon connectors

Terminal

項目 項目名
ATP-8L BNC connectors for Analog I/O Board
EPD-50A Screw Terminal (M3 x 50)

Expansion Accessory Module

項目 項目名
ATBA-16L Buffer Amplifier Function Extension Box for analog input board
ATBA-8L Buffer Amplifier Function Extension Box for analog input board

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
ACX-PAC(W32) Express Edition ActiveX Component for Measurement System
API-AIO(LNX) Analog I/O Driver for Linux
API-AIO(WDM) Windows version High-efficiency Analog I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Library Software

項目 項目名
ML-DAQ MATLAB compliant Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW

Application software

項目 項目名
C-LOGGER Data Logger Software for Windows

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
