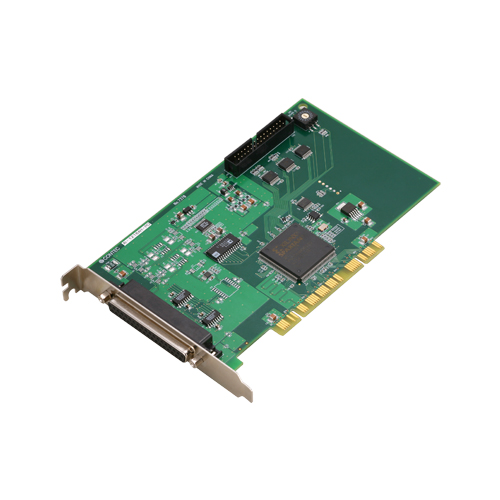

AI-1216AH-PCI 模拟量输入 PCI 总线板卡 / 16ch(12bit 6.66ks/s) / 1ch 计数器 / 输入增益

  • 停产商品
  • 标准保修3年
  • 延长保修可能
  • 修理承接期限 : 2023/01/31
  • Multifunction board allows you to build a complex system for even a PC with very few expansion slots
  • High-precision measurement can be performed by multiple input range setup
  • Equipped with buffer memory (1K data) which can be used in either FIFO or ring format
  • Sampling can be started and stopped by software or input data comparison or by an external trigger
  • *



型号 产品型号 适应规格
AI-1216AH-PCI 模拟量输入 PCI 总线板卡 / 16ch(12bit 6.66ks/s) / 1ch 计数器 / 输入增益
  • VCCI


Device Drivers

項目 項目名
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Development Support Tools

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development


項目 項目名
DT/B2 30pin Header to 37pin D-type(F) with Bracket-1.5m
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable


項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
