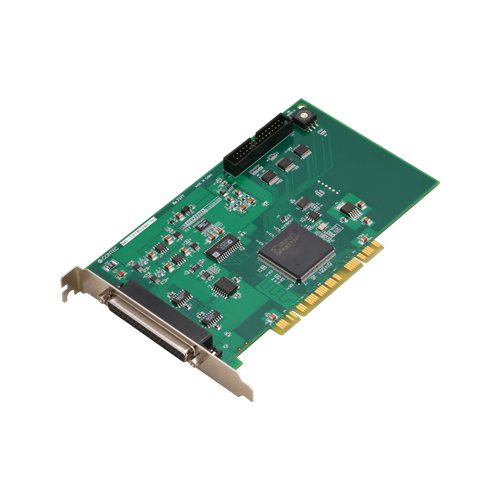

AIO-121602AH-PCI 模拟量输入输出 PCI 总线板卡 /16ch 模拟量输入(12bit 6.66ks/s) / 2ch 模拟量输出 / 1ch 计数器 / 输入增益

  • 停产商品
  • 标准保修3年
  • 延长保修可能
  • Multifunction board allows you to build a complex system for even a PC with very few expansion slots
  • High-precision measurement can be performed by multiple input range setup
  • Equipped with buffer memory (1K data) which can be used in either FIFO or ring format
  • Sampling can be started and stopped by software or input data comparison or by an external trigger
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
AIO-121602AH-PCI 模拟量输入输出 PCI 总线板卡 /16ch 模拟量输入(12bit 6.66ks/s) / 2ch 模拟量输出 / 1ch 计数器 / 输入增益

可选件

Cable

項目 項目名
DT/B2 30pin Header to 37pin D-type(F) with Bracket-1.5m
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
