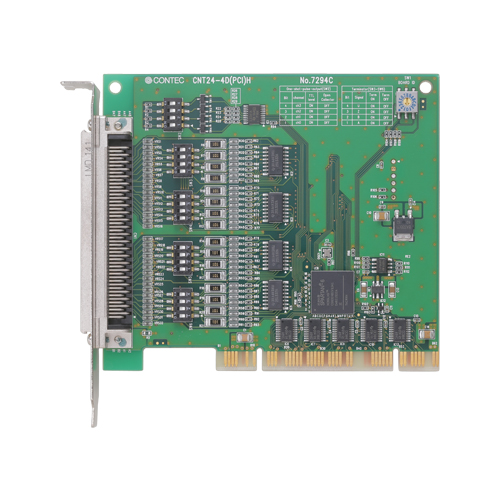

CNT24-4D(PCI)H 计数 PCI 总线板卡 4ch (24bit 上/下计数 1MHz) / 增量编码器接口

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • It is equipped with four channels of 24-bit up/down counters.
  • The board can count two-phase signals, which can be outputs of some rotary encoders and linear scales.
  • The board can count two-phase signals, which can be outputs of some rotary encoders and linear scales.
  • Each channel can generate an interrupt request signal and a one-pulse output signal when the count data matches a pre-specified value.
  • The board is equipped with a programmable timer to allow interrupts to be generated periodically according to a specified timer value.
  • Each Channel is equipped with a general-purpose input signal (both line-receiver and TTL).
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
CNT24-4D(PCI)H 计数 PCI 总线板卡 4ch (24bit 上/下计数 1MHz) / 增量编码器接口
  • CE 欧洲合格认证
  • VCCI

可选件

Cable

項目 項目名
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)

Terminal

項目 項目名
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Other Accessories

項目 項目名
CCB-96 Connector conversion card

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development
API-CNT(98/PC) Windows version Counter driver
API-CNT(LNX) Linux version Counter Input Driver
API-CNT(WDM) Windows Driver for Counter Input Driver
API-TIMER(W32) Timer Driver

Library Software

項目 項目名
VI-DAQ VI Library of data acquisition for LabVIEW

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
