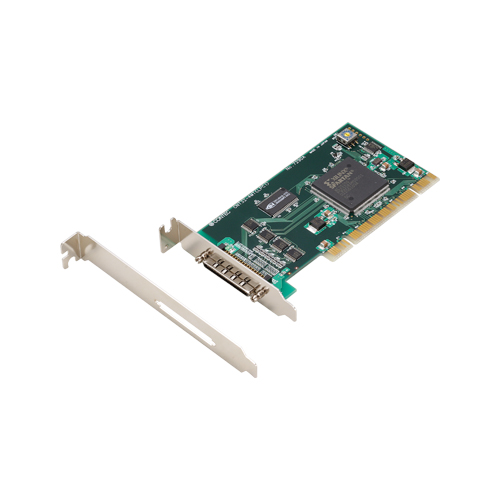

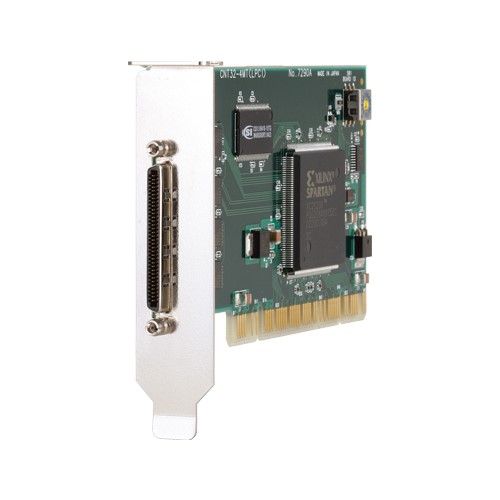

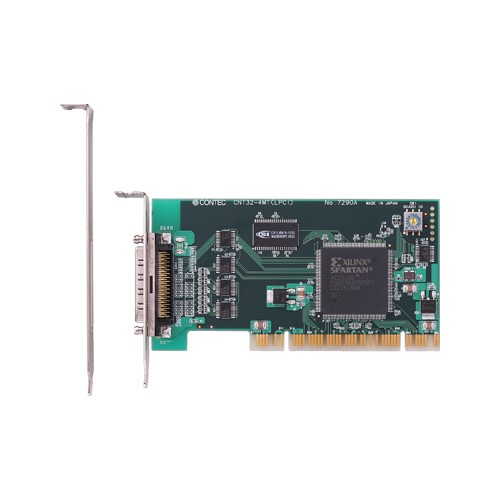

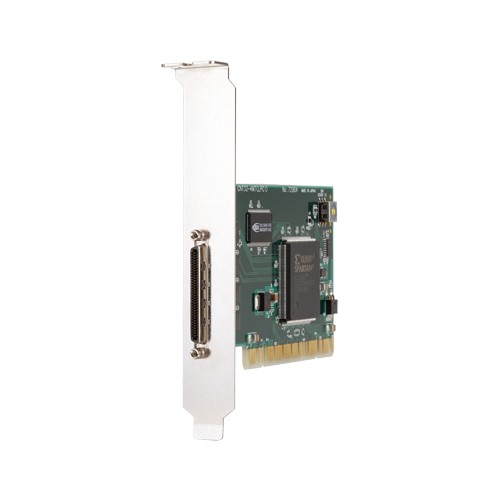

CNT32-4MT(LPCI) 计数 Low Profile PCI 总线板卡 4ch (32bit 上/下计数 10MHz) / 增量编码器接口

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • Can input two-phase and single-phase signals. Can input pulse signals up to 10MHz and can resolve phase differences as short as 25nsec.
  • Can be converted to a differential input interface using the differential unit (CTP-4D) and connection cable (CNT-68M/50M) which are sold separately.
  • One control signal input pin per channel.
  • Can count values sampling at a maximum sampling rate of 20 MHz. Supporting bus mastering, enabling high-speed data transfer between the board and the PC without intervention from the CPU.
  • Can generate an interrupt, issuing an external signal, or presetting/zero-clearing the count value when it matches an arbitrary predefined value.
  • Support for both of low-profile and standard PCI slots (interchangeable with a bundled bracket).
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
CNT32-4MT(LPCI) 计数 Low Profile PCI 总线板卡 4ch (32bit 上/下计数 10MHz) / 增量编码器接口
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
CNT-68M/50M Shield Cable for Counter Input Card for CardBus
PCA68PS-P 68pin 0.8mm Pitch Connector to Open-Ended, Shield Cable
PCB68PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

項目 項目名
EPD-50A Screw Terminal (M3 x 50)
EPD-68A Screw Terminal (M3 x 68)

Expansion Accessory Module

項目 項目名
CTP-4D Termination Panel with Differential Receivers for Counter Input

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-CNT(98/PC) Windows version Counter driver
API-CNT(WDM) Windows Driver for Counter Input Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
