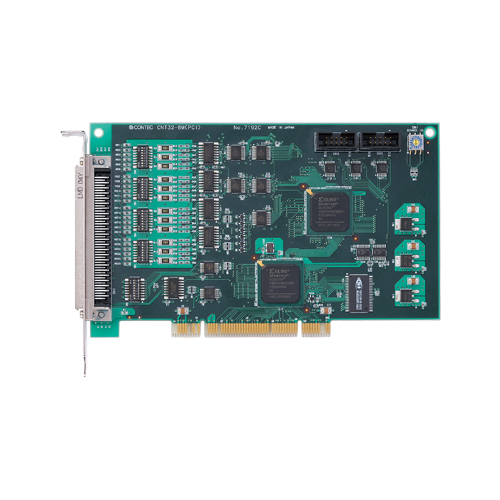

CNT32-8M(PCI) 计数 PCI 总线板卡 8ch (32bit 上/下计数 10MHz) / 增量编码器接口

  • RoHS Compliant
  • 标准保修3年
  • 延长保修可能
  • The input of two phase signal and a single phase signal is possible.
  • The input of the pulse signal to 10MHz is possible (the minimum phase difference in which the distinction in the case of being twophase signal input is possible is 25ns).
  • An input can choose either a differential input or a TTL level input for every channel.
  • The protection element is mounted in an input circuit and surge protection is realized.
  • Each channel has one control signal input.
  • The high-speed data transmission between a board and a personal computer is possible, without applying load to CPU by the PCI bus master transfer function.
  • *
    有关延长保修的详细信息,请与我们联系。

订购信息・选件

产品模式与订货型号

型号 产品型号/适应规格
CNT32-8M(PCI) 计数 PCI 总线板卡 8ch (32bit 上/下计数 10MHz) / 增量编码器接口
  • CE 欧洲合格认证

可选件

Cable

項目 項目名
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 68 pin 0.8mm pitch connectors

Terminal

項目 項目名
DTP-64A Screw Terminal (M3 x 96)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)

Other Accessories

項目 項目名
CCB-96 Connector conversion board

Software Development Kit

項目 項目名
ACX-PAC(W32) ActiveX components sets for measurement system development of analog input and output
API-CNT(98/PC) Windows version Counter driver
API-CNT(WDM) Windows Driver for Counter Input Driver
API-TIMER(W32) Timer Driver

Extended Warranty Service

項目 項目名
ESP-F6 Extended warranty service package (6 years service course)
